Network security with iptables

← Back to the main README

This document explains the firewall rules that restrict external access, why Docker needs special handling, how to apply and remove the rules, and the evidence that they work.

In plain words: a firewall is a security guard at the door of the computer. The guard has a list of rules ("let replies in", "only people from the home network may open door 8000", "everyone else is turned away"). iptables is the tool that writes that list on Linux.

Contents

1. Goal
2. Concepts you need
3. The rules
4. Use the script
5. Test plan and results
6. Evidence from the rule counters
7. The script
8. Limitations
9. Troubleshooting

---

1. Goal

The machine runs four services that publish ports: the webapp (8000), Prometheus (9090), Alertmanager (9093) and Grafana (3000). The requirement is to restrict external access:

Port	Service	Who may connect
8000	Webapp	Computers on the local network
9090	Prometheus	Only this machine (localhost)
9093	Alertmanager	Only this machine
3000	Grafana	Only this machine

Everything else arriving from the network is dropped, except normal replies to the machine's own connections.

2. Concepts you need

Chains and rules. iptables has chains, ordered lists of rules. A packet is compared with the rules from top to bottom, and the first matching rule decides: ACCEPT (let it through), DROP (silently discard) or RETURN (no decision here, go back to the calling chain).

Connection tracking (conntrack). Linux remembers connections. A packet that belongs to a conversation the machine started (ESTABLISHED) or is closely related to one (RELATED) can safely be allowed; this is how web pages you request can come back through a strict firewall.

Why Docker needs special handling. When a container publishes a port (-p 9090:9090), Docker rewrites the destination of incoming packets to the container's own address (this is called DNAT). Those packets are then forwarded to the container instead of being delivered to the host, so they never pass through the INPUT chain that most firewall guides use. The place Docker leaves for your own rules is the DOCKER-USER chain, which is checked before Docker's own rules.

 from the network
        |
   [ PREROUTING: Docker rewrites the destination (DNAT) ]
        |
        +--> addressed to the host itself ------> INPUT ........ chain DEVOPS-FW (this project)
        |
        +--> published container port ----------> FORWARD -> DOCKER-USER ... our container rules

Because the destination was rewritten, the rules use --ctorigdstport, which looks up the original port the client asked for.

3. The rules

Two sets of rules are created. Both only look at traffic arriving on the external network interface (for example enp47s0), so the machine's own traffic, Docker's internal networks and loopback are not affected.

3.1 Container ports: chain DOCKER-USER

#	Rule	Meaning
1	-i EXT_IF -m conntrack --ctstate RELATED,ESTABLISHED -j RETURN	Replies to connections the machine opened are fine
2	-i EXT_IF -s LAN -p tcp --ctorigdstport 8000 --ctdir ORIGINAL -j RETURN	The local network may open port 8000
3	-i EXT_IF -j DROP	Anything else arriving from outside towards a container is dropped (this blocks 9090, 9093 and 3000)
4	-j RETURN	Everything else (traffic between containers, outgoing traffic) continues to Docker's normal rules

Connections from the machine itself (localhost:9090) do not arrive on the external interface, so they keep working.

3.2 The host itself: chain DEVOPS-FW (jumped to from INPUT)

#	Rule	Meaning
1	! -i EXT_IF -j RETURN	Not our business if it did not arrive on the external interface (loopback, Docker bridges and VPN stay untouched)
2	-m conntrack --ctstate RELATED,ESTABLISHED -j ACCEPT	Replies are allowed
3	-p icmp -j ACCEPT	Ping and network diagnostics are allowed
4	-p udp --sport 67 --dport 68 -j ACCEPT	DHCP answers, so the machine can still get its network address
5	-p tcp --dport 22 -s LAN -j ACCEPT	SSH only from the local network
6	-j DROP	Everything else unsolicited is dropped

A dedicated chain was used on purpose. Other software (here: Tailscale) adds its own rules to INPUT, and a separate chain can be added and removed without touching them.

4. Use the script

The script is iptables/firewall.sh. It needs root.

cd iptables
sudo ./firewall.sh up        # apply the rules and print them
sudo ./firewall.sh status    # show the rules with their packet counters
sudo ./firewall.sh down      # remove everything, back to the default state

By default the script detects the external interface from the default route and the local network from that interface's address. Override them if needed:

sudo EXT_IF=enp47s0 LAN=192.168.100.0/24 ./firewall.sh up

After up it prints, for example: External interface: enp47s0 | LAN: 192.168.100.15/24.

down is always safe to run: it removes the DEVOPS-FW chain and the jump to it, and resets DOCKER-USER to its default single RETURN rule.

5. Test plan and results

The test needs a second machine on the network, because connections from the machine to itself are never blocked. Here the home server (192.168.100.6) acted as the outside client, and the laptop (192.168.100.15) ran the services and the firewall.

The test, run on the second machine (it prints the HTTP status code, 000 means the connection timed out after 3 seconds):

for p in 8000 9090 9093 3000
do
  printf "port $p: "
  curl -s -m 3 -o /dev/null -w "%{http_code}\n" http://192.168.100.15:$p/
done

Port	Service	Before the firewall	After firewall.sh up
8000	Webapp	200	200 (allowed from the LAN)
9090	Prometheus	302 (redirect to its UI)	000 (blocked)
9093	Alertmanager	200	000 (blocked)
3000	Grafana	302 (redirect to the login page)	000 (blocked)

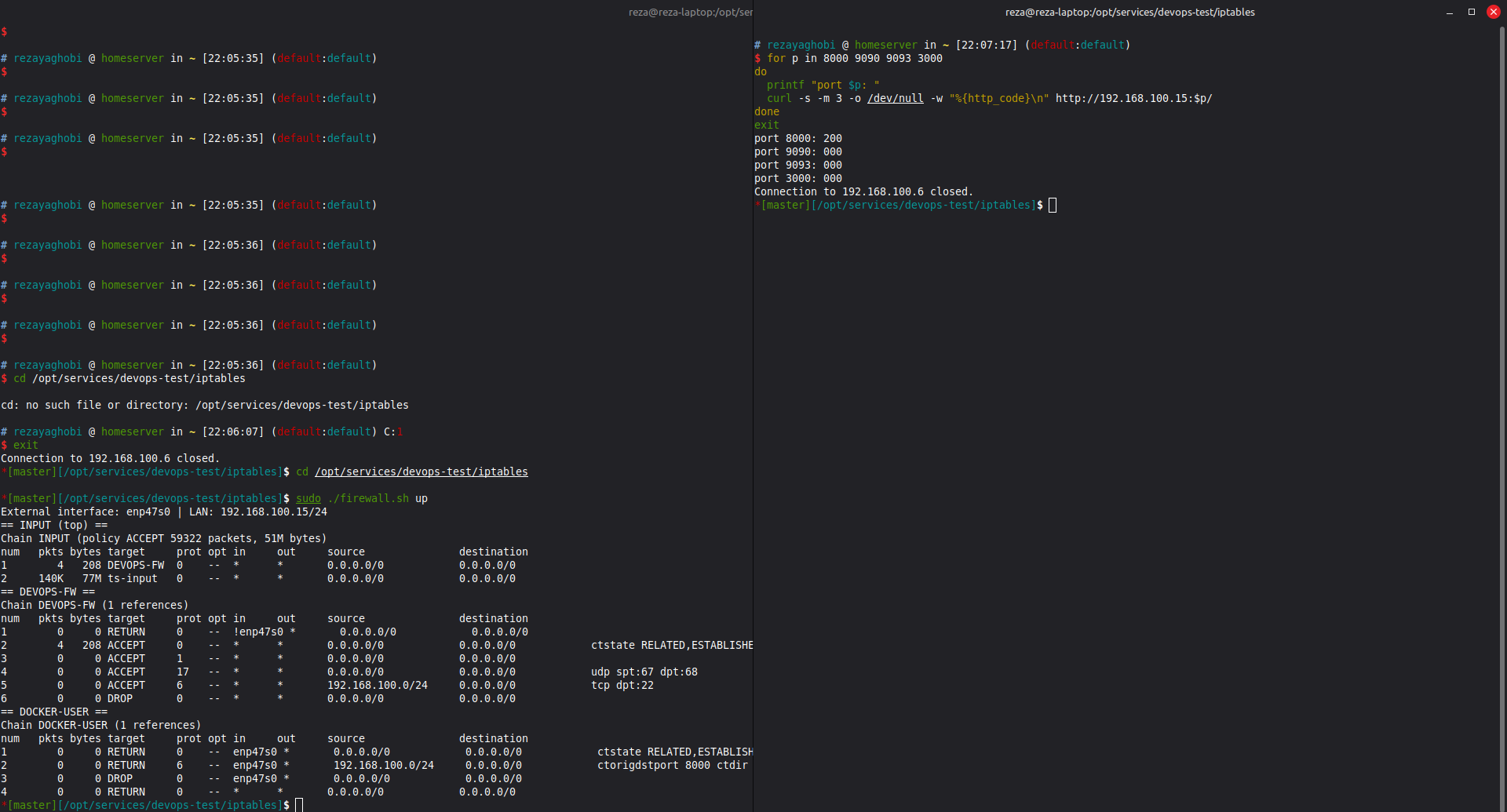

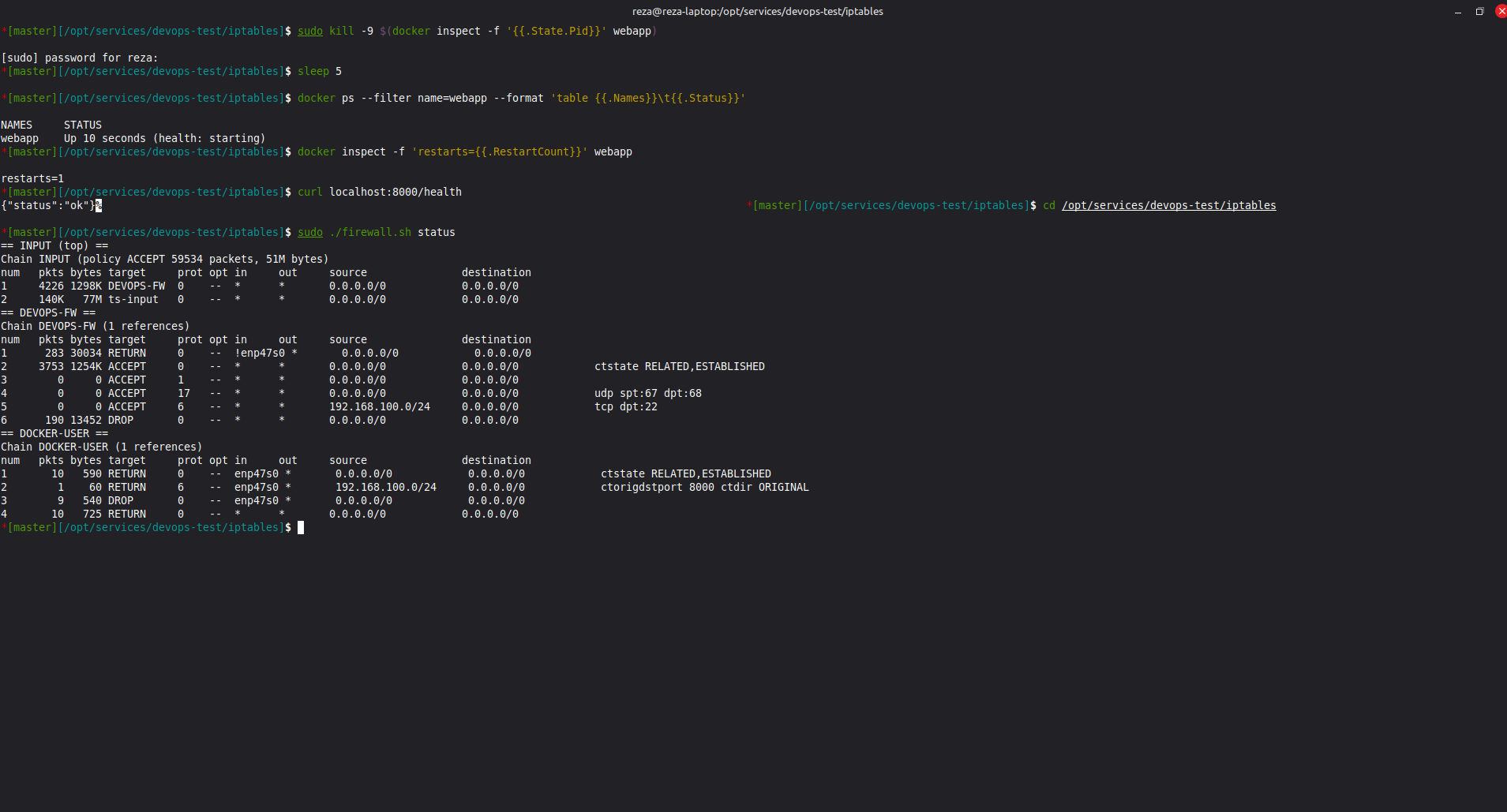

Left: sudo ./firewall.sh up reports the external interface and the LAN and prints the rules. Right: the test from the server shows port 8000 answering 200 while 9090, 9093 and 3000 time out (000).

The services remain fully usable on the machine itself:

curl -s localhost:9090/-/healthy      # Prometheus Server is Healthy.
curl -s localhost:3000/api/health     # Grafana answers {"database": "ok", ...}

6. Evidence from the rule counters

iptables -L -v shows how many packets each rule has handled. Counters that are above zero on the DROP rules prove that the rules are actually blocking traffic.

The status output after the test:

Where	Rule	Packets	What it shows
INPUT	#1 jump to DEVOPS-FW	4226	DEVOPS-FW is checked first, before Tailscale's rules (ts-input)
DEVOPS-FW	#2 RELATED,ESTABLISHED	3753	Replies to the machine's own connections are allowed through
DEVOPS-FW	#6 DROP	190	Unsolicited inbound packets nobody allowed were dropped
DOCKER-USER	#2 LAN to port 8000	1	The allowed connection to the webapp passed
DOCKER-USER	#3 DROP	9	The connection attempts to the blocked ports 9090, 9093 and 3000 (TCP retries the first packet)

7. The script

Show iptables/firewall.sh

#!/usr/bin/env bash
# Restrict external access to this host and to Docker-published ports.
# Usage: sudo ./firewall.sh up | down | status
set -euo pipefail

[ "$EUID" -eq 0 ] || { echo "Run with sudo"; exit 1; }

EXT_IF="${EXT_IF:-$(ip route show default | awk '/default/ {print $5; exit}')}"
[ -n "$EXT_IF" ] || { echo "No default route found, set EXT_IF=<interface>"; exit 1; }
LAN="${LAN:-$(ip -o -4 addr show dev "$EXT_IF" | awk '{print $4; exit}')}"
APP_PORT=8000
CHAIN=DEVOPS-FW

down() {
  while iptables -D INPUT -j "$CHAIN" 2>/dev/null; do :; done
  iptables -F "$CHAIN" 2>/dev/null || true
  iptables -X "$CHAIN" 2>/dev/null || true
  iptables -F DOCKER-USER 2>/dev/null || true
  iptables -A DOCKER-USER -j RETURN 2>/dev/null || true
}

up() {
  down
  echo "External interface: $EXT_IF | LAN: $LAN"

  # Host traffic (INPUT): only packets arriving on the external interface are filtered
  iptables -N "$CHAIN"
  iptables -A "$CHAIN" ! -i "$EXT_IF" -j RETURN
  iptables -A "$CHAIN" -m conntrack --ctstate RELATED,ESTABLISHED -j ACCEPT
  iptables -A "$CHAIN" -p icmp -j ACCEPT
  iptables -A "$CHAIN" -p udp --sport 67 --dport 68 -j ACCEPT
  iptables -A "$CHAIN" -p tcp --dport 22 -s "$LAN" -j ACCEPT
  iptables -A "$CHAIN" -j DROP
  iptables -I INPUT 1 -j "$CHAIN"

  # Container ports (DOCKER-USER): after DNAT only the original destination port tells us what was requested
  iptables -F DOCKER-USER
  iptables -A DOCKER-USER -i "$EXT_IF" -m conntrack --ctstate RELATED,ESTABLISHED -j RETURN
  iptables -A DOCKER-USER -i "$EXT_IF" -s "$LAN" -p tcp -m conntrack --ctorigdstport "$APP_PORT" --ctdir ORIGINAL -j RETURN
  iptables -A DOCKER-USER -i "$EXT_IF" -j DROP
  iptables -A DOCKER-USER -j RETURN
}

status() {
  echo "== INPUT (top) =="; iptables -L INPUT -n -v --line-numbers | head -5
  echo "== $CHAIN =="; iptables -L "$CHAIN" -n -v --line-numbers 2>/dev/null || echo "not active"
  echo "== DOCKER-USER =="; iptables -L DOCKER-USER -n -v --line-numbers
}

case "${1:-}" in
  up) up; status ;;
  down) down; status ;;
  status) status ;;
  *) echo "Usage: sudo $0 up|down|status"; exit 1 ;;
esac

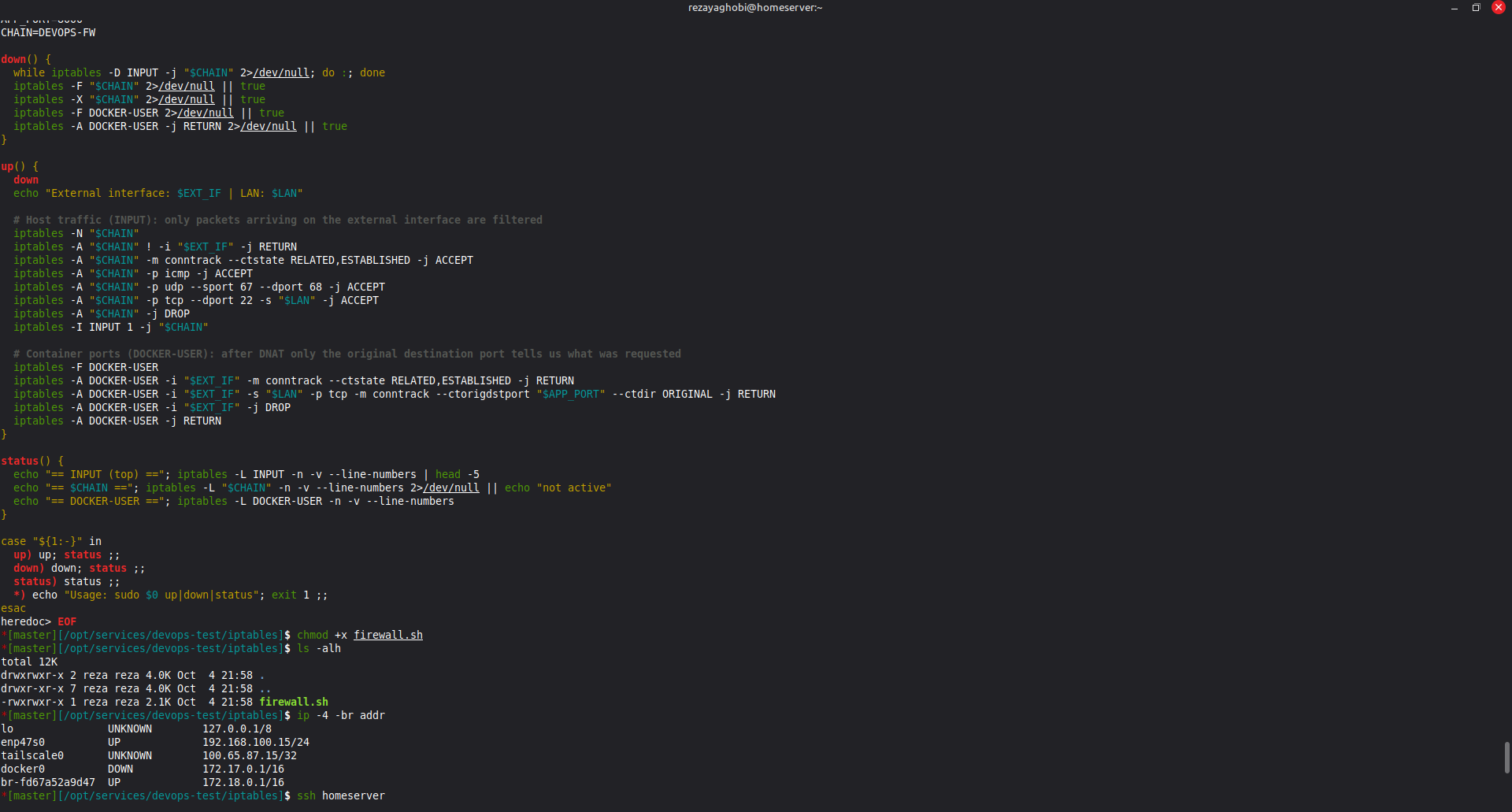

The terminal shows the script as saved on the laptop, and ip -4 -br addr, which lists the interfaces: enp47s0 (the wired network, 192.168.100.15/24), tailscale0 (VPN), and the Docker bridges.

8. Limitations

Limitation	Detail
Not persistent	The rules disappear after a reboot (and down removes them on purpose). To keep them, run the script at boot (for example from a systemd unit) or use iptables-persistent or nftables
IPv4 only	Docker also publishes ports on IPv6 ([::]:8000). A production setup needs the same rules in ip6tables, or IPv6 disabled on the host
One external interface	Only the interface detected as EXT_IF is filtered. Traffic arriving through another interface, such as a VPN (tailscale0) or a second network card, is not touched by these rules
Port 8000 is fixed	Change APP_PORT in the script if the webapp port changes
DOCKER-USER is replaced	up empties the chain before adding its rules, so any other custom rule in it would be lost
Not a complete host firewall	Other services listening directly on the host (not in containers) are only covered by the DEVOPS-FW rules

9. Troubleshooting

Symptom	Cause and fix
The second machine cannot reach even port 8000, and ping fails, before the firewall	A VPN is routing the replies another way. This happened with Tailscale: the laptop accepted the home network as a "subnet route" and answered through the tunnel instead of the cable. ip route get <other-machine-ip> shows the interface used. Fix for the test: sudo tailscale set --accept-routes=false (turn it back on afterwards with =true)
Locked out or something broke	sudo ./firewall.sh down removes everything immediately
iptables: No chain/target/match by that name for DOCKER-USER	Docker is not running. Start Docker first
Rules seem ignored	Another firewall manager may be active: sudo ufw status should say inactive
Run with sudo	The script needs root to change firewall rules
Wrong interface detected	Pass it explicitly: sudo EXT_IF=<name> ./firewall.sh up (list names with ip -br addr)
