Monitoring and alerting

← Back to the main README

This document explains how the web service is monitored: how numbers are collected (Prometheus), how problems are detected (alert rules), how people are told (Alertmanager), and how the data is shown (Grafana).

In plain words: Prometheus is a collector that visits the web service every 15 seconds and writes down its numbers. Alert rules are questions Prometheus asks over and over ("is the service down?"). When the answer is yes for long enough, Alertmanager sends a message. Grafana draws the numbers as charts.

Contents

1. Architecture
2. Files in monitoring/
3. How each part is configured
4. Start the stack
5. Verify it works
6. Trigger and read an alert
7. Grafana
8. Troubleshooting
9. What would change in production

---

1. Architecture

                scrapes /metrics every 15 s
 +-----------+ <------------------------------- +------------+
 |  webapp   |                                  | Prometheus |  evaluates the alert rules
 |   :8000   |                                  |   :9090    |  every 15 s
 +-----------+                                  +-----+------+
                                                      | sends alerts that are firing
                                                      v
                                              +---------------+  webhook   +--------------+
                                              | Alertmanager  | ---------> | alert-logger |
                                              |    :9093      |            | prints them  |
                                              +---------------+            +--------------+

 +-----------+   asks Prometheus questions (PromQL)
 |  Grafana  | ----------------------------------> Prometheus
 |   :3000   |
 +-----------+

All containers share the Docker network monitoring-net, so they find each other by name (webapp:8000, prometheus:9090, alertmanager:9093). Only the ports in the diagram are published on the host.

Component	Image	Role
Prometheus	prom/prometheus:v2.53.0	Collects and stores metrics, evaluates alert rules
Alertmanager	prom/alertmanager:v0.27.0	Groups alerts and delivers them to a receiver
alert-logger	mendhak/http-https-echo	A tiny receiver that prints every notification it gets. It stands in for e-mail or Slack, so the project needs no external account
Grafana	grafana/grafana:11.1.0	Dashboards

2. Files in monitoring/

monitoring/
├── compose.yml                              starts the four containers
├── prometheus/
│   ├── prometheus.yml                       what to scrape, where to send alerts
│   └── alert_rules.yml                      the alert rules
├── alertmanager/
│   └── alertmanager.yml                     how alerts are routed
└── grafana/
    ├── provisioning/
    │   ├── datasources/prometheus.yml       connects Grafana to Prometheus automatically
    │   └── dashboards/dashboards.yml        tells Grafana to load dashboards from a folder
    └── dashboards/
        └── webapp.json                      the "Webapp Overview" dashboard

Everything is configured by files, so the whole setup can be recreated from the repository without clicking in any web interface.

3. How each part is configured

3.1 compose.yml

Four services (prometheus, alertmanager, alert-logger, grafana), all with restart: unless-stopped, all on the external network monitoring-net. Configuration files are mounted read-only into the containers (:ro). Three named volumes (prometheus-data, alertmanager-data, grafana-data) keep the data when containers are recreated. Prometheus keeps 7 days of history (--storage.tsdb.retention.time=7d) and has --web.enable-lifecycle on, which allows reloading its configuration without a restart.

3.2 prometheus/prometheus.yml

global:
  scrape_interval: 15s
  evaluation_interval: 15s

alerting:
  alertmanagers:
    - static_configs:
        - targets: ["alertmanager:9093"]

rule_files:
  - /etc/prometheus/alert_rules.yml

scrape_configs:
  - job_name: prometheus
    static_configs:
      - targets: ["localhost:9090"]

  - job_name: webapp
    metrics_path: /metrics
    static_configs:
      - targets: ["webapp:8000"]

• scrape_interval: how often targets are visited. evaluation_interval: how often alert rules are checked.
• alerting: where firing alerts are sent.
• scrape_configs: two targets. Prometheus monitors itself, and the webapp job reads http://webapp:8000/metrics.

3.3 prometheus/alert_rules.yml

groups:
  - name: webapp
    rules:
      - alert: WebappDown
        expr: up{job="webapp"} == 0
        for: 30s
        labels:
          severity: critical
        annotations:
          summary: "Webapp is down"
          description: "Prometheus cannot scrape the webapp for more than 30 seconds."

      - alert: HighErrorRate
        expr: sum(rate(http_requests_total{status=~"5.."}[1m])) / sum(rate(http_requests_total[1m])) > 0.05
        for: 1m
        labels:
          severity: warning
        annotations:
          summary: "More than 5% of requests are failing"
          description: "The 5xx ratio has been above 5% for 1 minute."

      - alert: HighLatencyP95
        expr: histogram_quantile(0.95, sum by (le) (rate(http_request_duration_seconds_bucket[5m]))) > 0.5
        for: 2m
        labels:
          severity: warning
        annotations:
          summary: "p95 latency above 500ms"
          description: "95% of requests take longer than 0.5s."

What the three rules ask, in plain words:

Alert	The question	Fires after
WebappDown	up is 1 when Prometheus could read the target and 0 when it could not. "Is the webapp unreachable?"	30 s
HighErrorRate	rate(...[1m]) is "per second, averaged over the last minute". Errors per second divided by all requests per second is the share of failures. "Are more than 5% failing?"	1 min
HighLatencyP95	histogram_quantile(0.95, ...) is the time that 95 out of 100 requests beat. "Are the slowest 5% taking longer than half a second?"	2 min

The for: delay prevents false alarms from a single bad reading. An alert goes through three states: inactive (all fine), pending (condition true, waiting out the for: time) and firing (alert sent).

The rules alert on what users feel (down, failing, slow), not on internal causes such as CPU usage.

3.4 alertmanager/alertmanager.yml

route:
  receiver: logger
  group_by: ["alertname"]
  group_wait: 10s
  group_interval: 1m
  repeat_interval: 1h

receivers:
  - name: logger
    webhook_configs:
      - url: http://alert-logger:8080/
        send_resolved: true

• group_by: alerts with the same name are bundled into one message.
• group_wait: 10s: after the first alert arrives, wait 10 s to bundle related alerts before sending.
• group_interval: 1m: minimum time between messages about changes in the same group.
• repeat_interval: 1h: re-send a still-firing alert every hour.
• send_resolved: true: also notify when the problem is over.

3.5 Grafana provisioning

• datasources/prometheus.yml registers Prometheus (http://prometheus:9090) as the default data source.
• dashboards/dashboards.yml tells Grafana to load every dashboard file in /var/lib/grafana/dashboards.
• dashboards/webapp.json is the Webapp Overview dashboard with four panels: webapp up (1 = yes), request rate by path, 5xx error ratio, and p95 latency.

4. Start the stack

The webapp stack must exist first, because both stacks use the same network:

docker network create monitoring-net     # only once
cd webapp && docker compose up -d --build
cd ../monitoring && docker compose up -d
docker compose ps

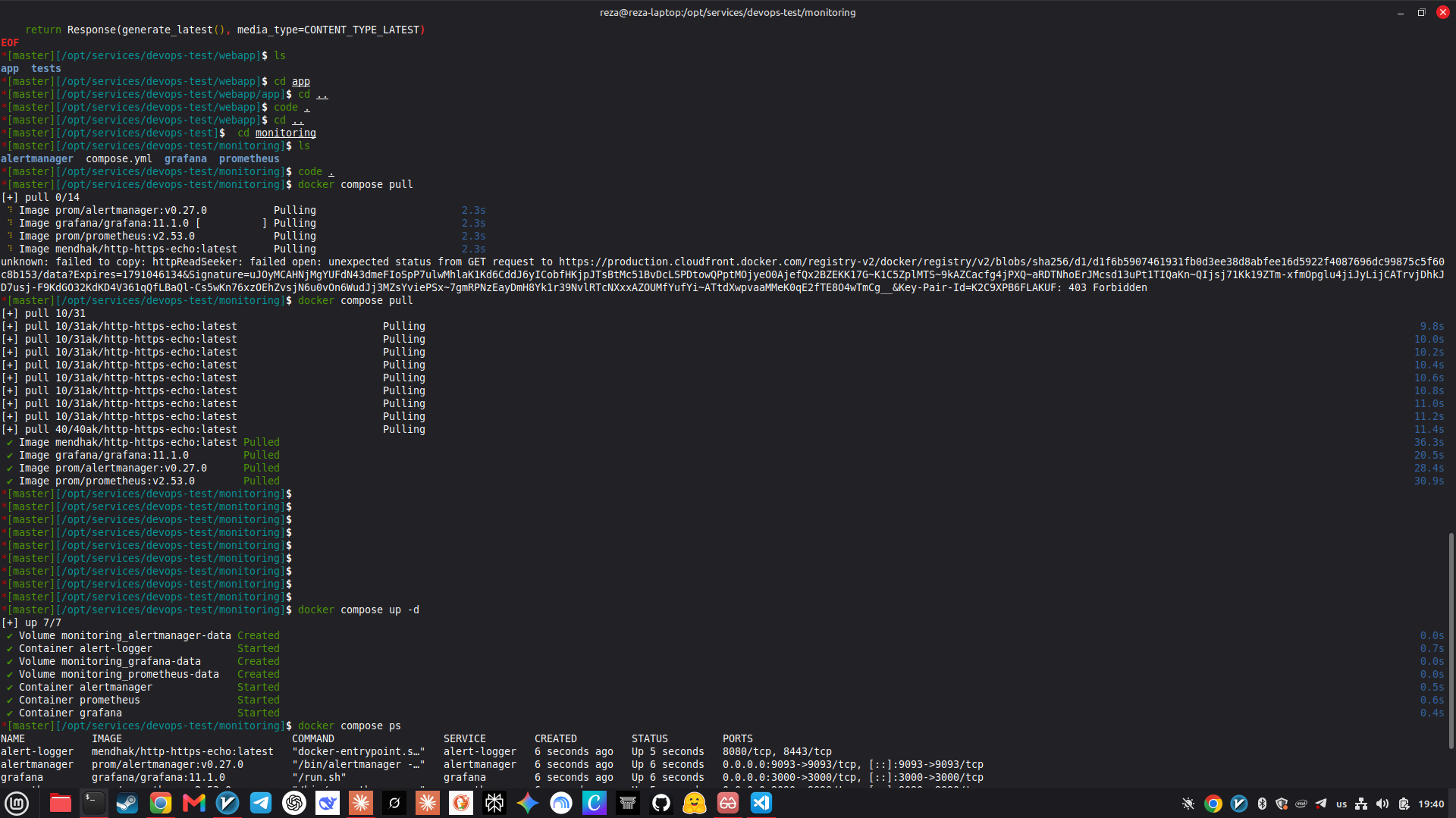

The first docker compose pull hit a temporary "403 Forbidden" while downloading one layer from Docker Hub's content network; running it again succeeded. Then docker compose up -d creates the three volumes and starts all four containers.

Check the configuration for mistakes before or after starting:

docker exec prometheus promtool check config /etc/prometheus/prometheus.yml

5. Verify it works

What	Where
Prometheus targets	http://localhost:9090/targets
Alert rules	http://localhost:9090/alerts
Alertmanager	http://localhost:9093
Grafana	http://localhost:3000 (user admin, password admin unless GRAFANA_PASSWORD is set)

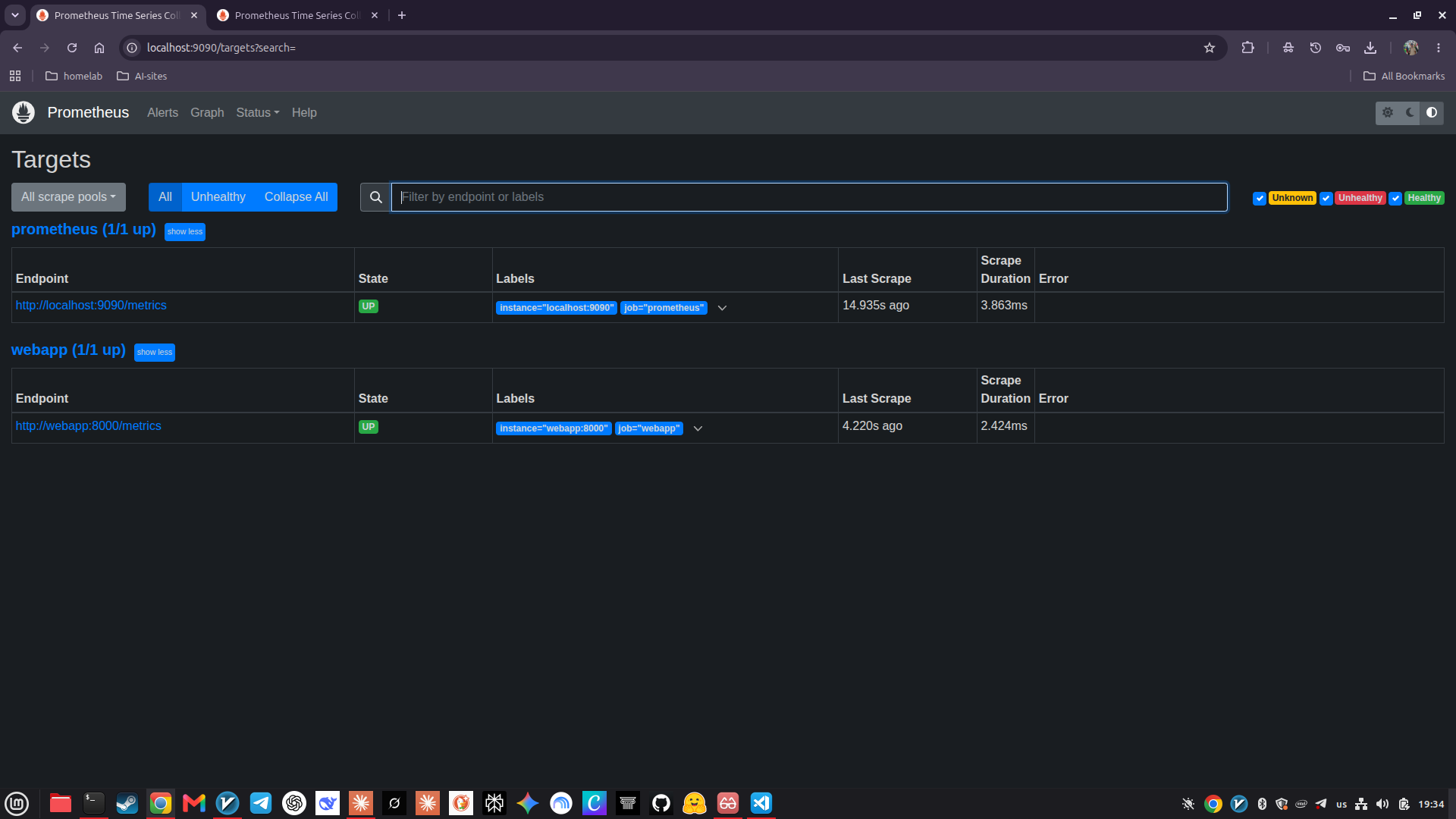

Targets. Both prometheus and webapp must be UP.

webapp is scraped at http://webapp:8000/metrics (the container name resolves over the shared network). The scrape takes about 2 ms.

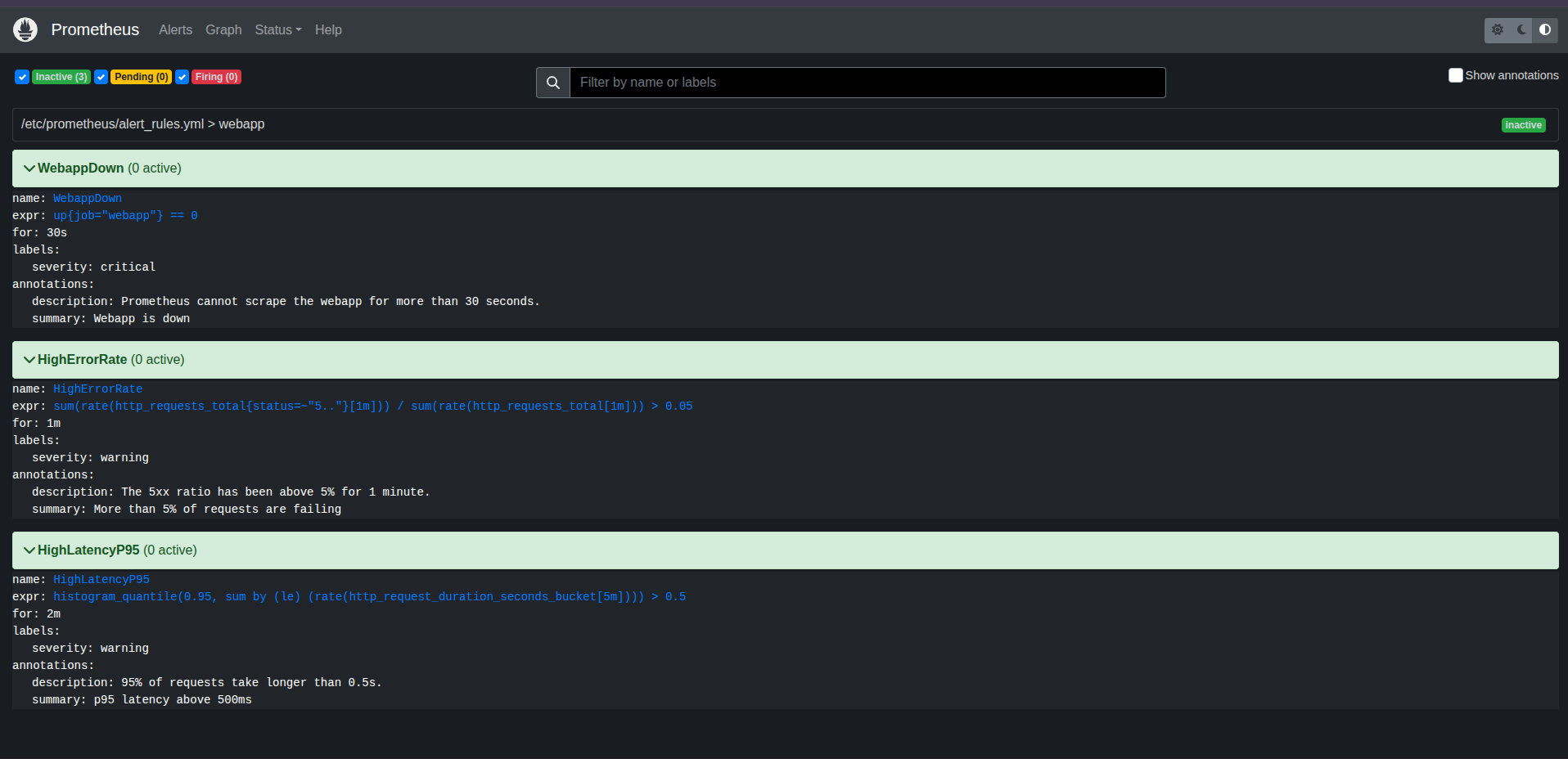

Alert rules. All three rules are loaded and inactive while everything is healthy.

The page shows each rule's expression, its for time, labels and annotations, which match alert_rules.yml.

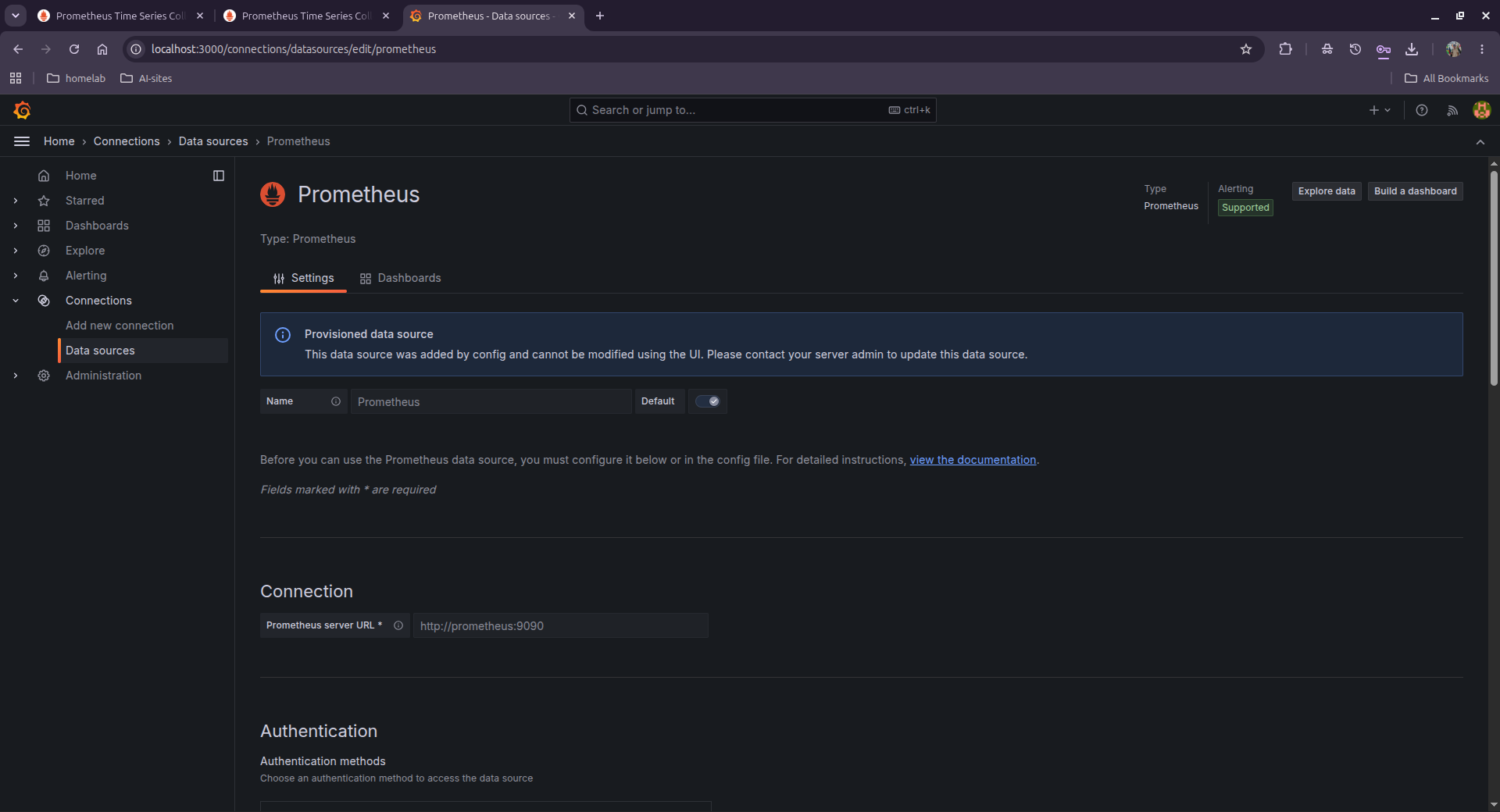

Grafana data source. It was created by configuration, not by hand.

Grafana says "This data source was added by config and cannot be modified using the UI", which proves provisioning works. The URL is http://prometheus:9090.

6. Trigger and read an alert

Test 1: the webapp goes down

docker stop is a deliberate stop, so the restart policy does not bring the container back, and the target stays down:

docker stop webapp

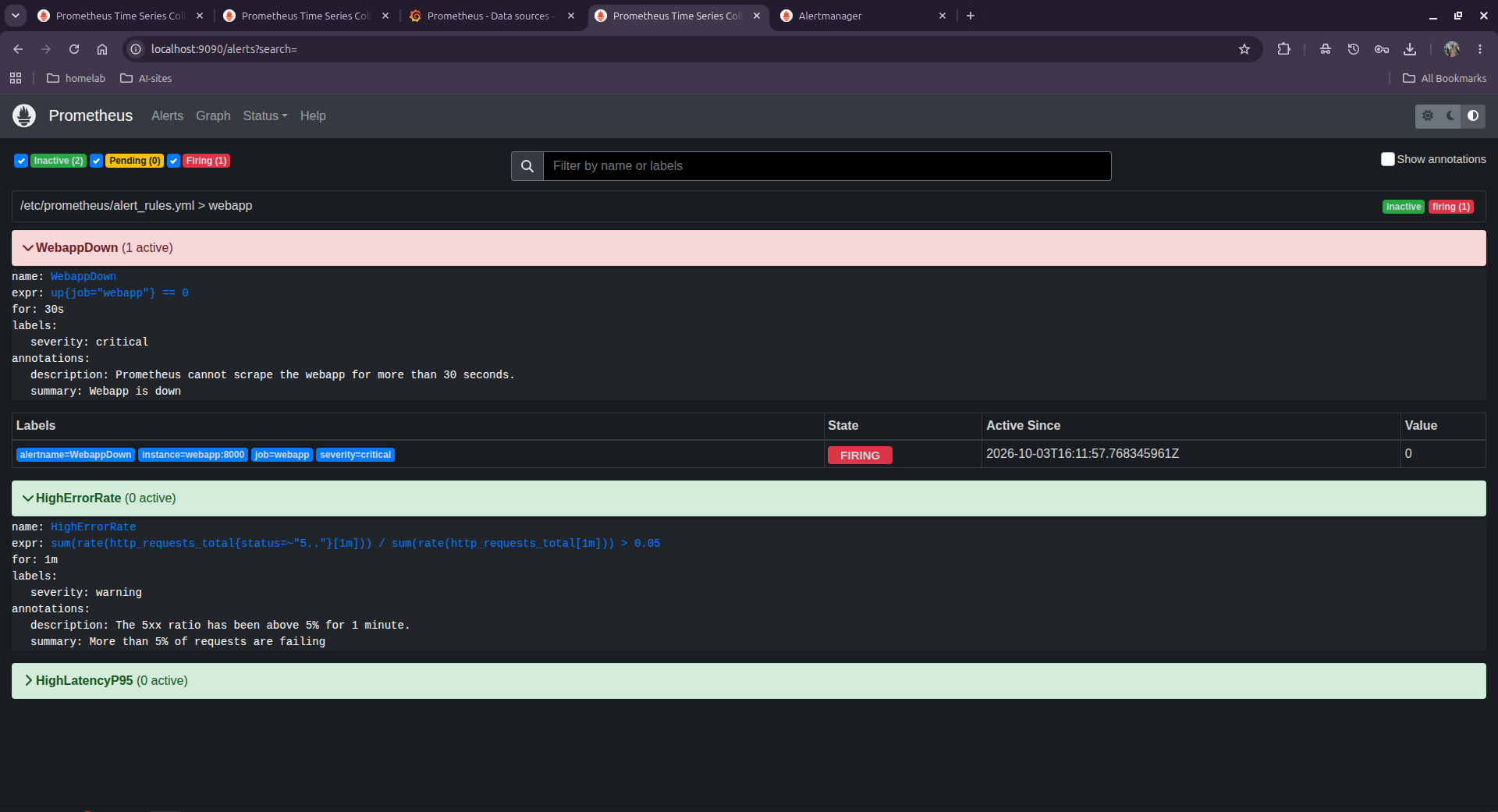

Watch http://localhost:9090/alerts. After the for: 30s delay, WebappDown turns red:

WebappDown is FIRING with the labels instance=webapp:8000, job=webapp, severity=critical. The other two rules stay inactive. "Active Since" shows the moment Prometheus first saw the target down.

Alertmanager then delivers the notification to the receiver. Read it with:

docker logs alert-logger --tail 40

The log of the test run contained (shortened):

"status": "firing",
"labels": { "alertname": "WebappDown", "instance": "webapp:8000", "job": "webapp", "severity": "critical" },
"annotations": { "summary": "Webapp is down", "description": "Prometheus cannot scrape the webapp for more than 30 seconds." },
"startsAt": "2026-10-03T16:12:27.768Z",
...
::ffff:172.18.0.4 - - [03/Oct/2026:16:12:37 +0000] "POST / HTTP/1.1" 200 2729 "-" "Alertmanager/0.27.0"

The timeline matches the configuration:

Time (UTC)	Event
16:11:57	Prometheus sees the webapp down; the alert is pending ("Active Since" in the screenshot)
16:12:27	30 s later (for: 30s) the alert starts firing (startsAt)
16:12:37	10 s later (group_wait: 10s) Alertmanager delivers it, and the receiver answers 200

Bring the service back; a "resolved" notification follows because of send_resolved: true:

docker start webapp

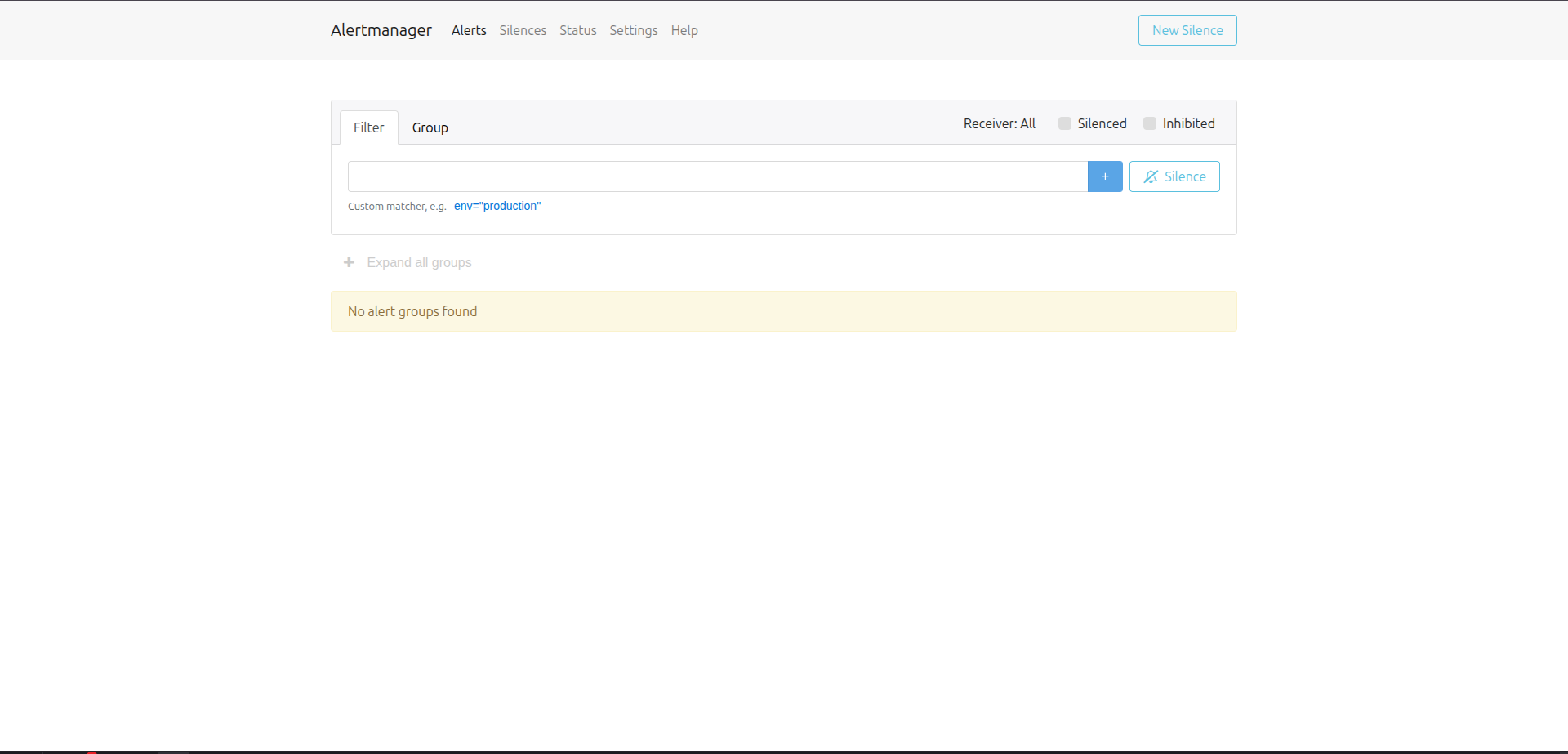

Alertmanager's own page at http://localhost:9093 lists alerts that are active right now:

This capture was taken when nothing was firing, which is why it says "No alert groups found". During an incident the firing alert appears here, grouped by alertname.

Test 2: many requests fail

for i in $(seq 1 600); do curl -s localhost:8000/error > /dev/null; sleep 0.2; done

/error returns 500 every time, so the share of failed requests rises above 5%. After one minute HighErrorRate starts firing. The Grafana panel 5xx error ratio shows the spike.

7. Grafana

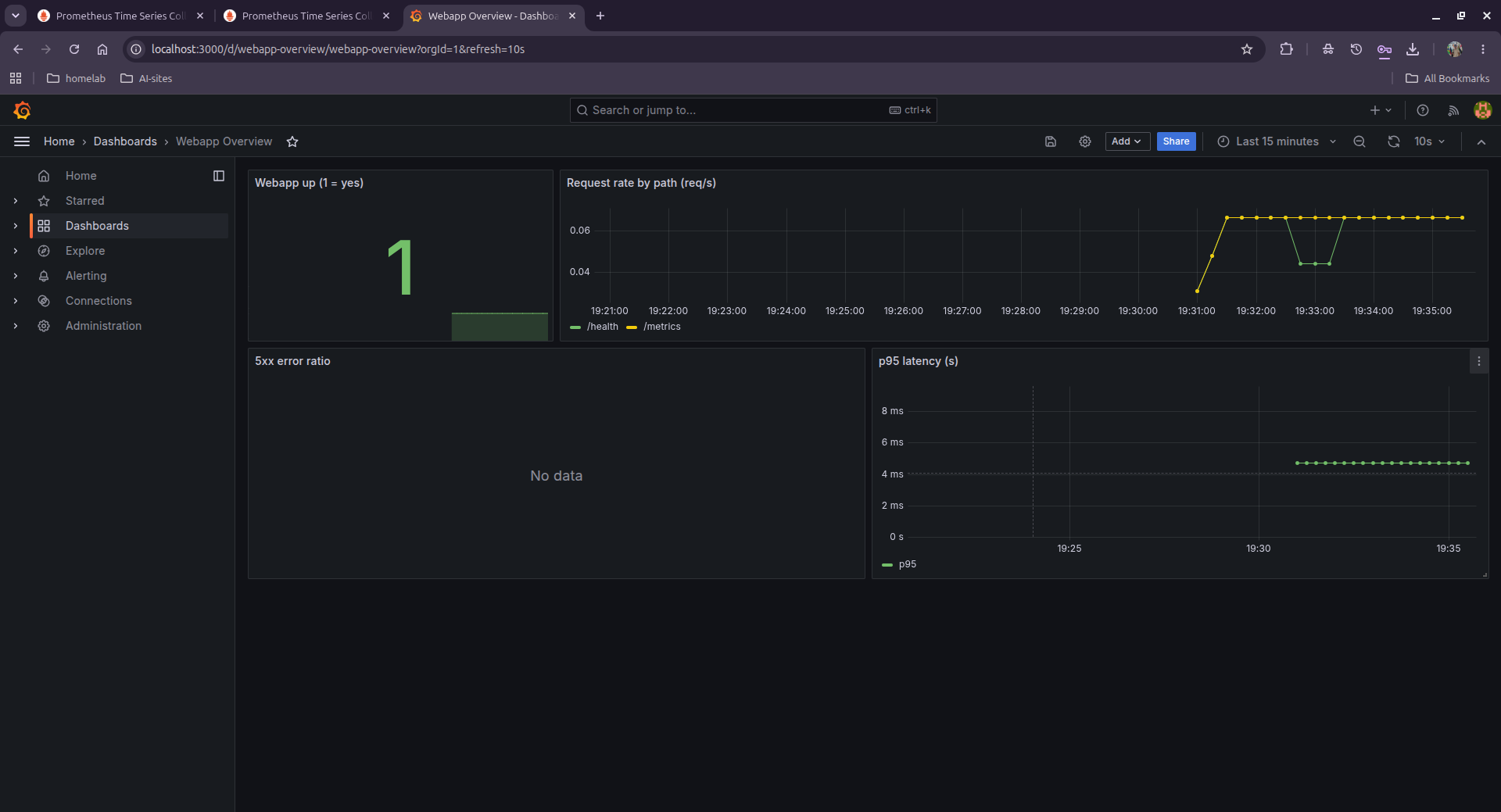

Open http://localhost:3000, sign in, then go to Dashboards → Webapp Overview. It refreshes every 10 seconds.

Top left: the webapp is up (1). Top right: requests per second, split by path. The two lines are /health (Docker's health check) and /metrics (Prometheus's own scrapes). Bottom right: the p95 latency is around 5 ms. Bottom left: "No data" is correct, because no 5xx errors had happened yet; the panel fills in once /error is called.

The default password admin is acceptable on a laptop only. Set a real one with the environment variable GRAFANA_PASSWORD before exposing Grafana anywhere.

8. Troubleshooting

Symptom	What to check
docker compose pull fails with 403 Forbidden	The download network refused one layer. Run the command again; if it keeps failing, pull the images on another connection or use a registry mirror
Target webapp is DOWN	Is the webapp container running (docker ps)? Is it on the shared network (docker network inspect monitoring-net)? Does curl localhost:8000/metrics work?
Alerts page is empty	The rules file did not load. Run promtool check config (above) and read docker logs prometheus
Changed a rule or config	Reload without restarting: curl -X POST localhost:9090/-/reload
Alert fires but nothing arrives	Is Alertmanager reachable (docker logs alertmanager)? Is alert-logger running? Check http://localhost:9090/status for the alertmanager list
Grafana panels show "No data"	Wait a minute for data; check the time range (top right); confirm the data source is healthy on the data sources page

9. What would change in production

• Real receivers (e-mail, Slack, PagerDuty) instead of the logging webhook, with secrets kept out of the repository.
• Authentication and TLS in front of Prometheus, Alertmanager and Grafana (they are open on their ports here).
• A strong Grafana password and pinned image versions everywhere (alert-logger uses the latest tag in this project).
• A longer retention or remote storage, and Alertmanager high availability.
• Alerts that also cover the host (disk, memory) and the Docker daemon, for example with node_exporter and cAdvisor.
