The web application and its container

← Back to the main README

This document explains the small Python web service that the rest of the project deploys, builds, monitors and protects: what it does, how it is tested, and how the Dockerfile and Compose file turn it into a container.

In plain words: the webapp is a tiny web server with a health page and a page that counts things, so the monitoring can watch it. Docker packs it into a box (a container) together with everything it needs to run, so the same box runs the same way on any machine.

Contents

1. What the service does
2. The application code
3. The tests
4. The Dockerfile, line by line
5. The Compose file
6. The health check
7. Restart policy and crash recovery
8. Run and verify
9. Troubleshooting
10. What would change in production

---

1. What the service does

The service is a FastAPI application served by uvicorn on port 8000. It is deliberately small, but it exposes everything the other parts of the test need: a health endpoint for Docker, a metrics endpoint for Prometheus, and an endpoint that always fails so the error-rate alert can be triggered on purpose.

Method	Path	Response	Why it exists
GET	/	{"message": "Hello from the DevOps test service"}	Proves the service is reachable
GET	/health	{"status": "ok"}	Read by Docker's health check
GET	/error	HTTP 500	Generates 5xx responses to trigger the HighErrorRate alert
GET	/metrics	Prometheus text format	Scraped by Prometheus every 15 s

Every request is also measured. Two metrics are exported:

Metric	Type	Labels	Meaning
http_requests_total	Counter	method, path, status	How many requests, split by outcome
http_request_duration_seconds	Histogram	path	How long requests take, as a distribution

The histogram is what lets Prometheus answer "are the slowest 5% of requests taking too long?" in docs/monitoring.md.

The files that make up the service:

webapp/
├── app/
│   └── main.py              the whole application
├── tests/
│   └── test_app.py          four pytest tests
├── requirements.txt         runtime dependencies
├── requirements-dev.txt     test dependencies
├── pytest.ini               lets pytest import the app
├── Dockerfile               builds the image
├── compose.yml              runs the container
└── .dockerignore            keeps junk out of the image

2. The application code

The entire application is webapp/app/main.py:

import time

from fastapi import FastAPI, HTTPException, Request, Response
from prometheus_client import CONTENT_TYPE_LATEST, Counter, Histogram, generate_latest

app = FastAPI(title="DevOps Test Service")

REQUESTS = Counter(
    "http_requests_total", "Total HTTP requests", ["method", "path", "status"]
)
LATENCY = Histogram(
    "http_request_duration_seconds", "Request latency in seconds", ["path"]
)


@app.middleware("http")
async def track_metrics(request: Request, call_next):
    start = time.perf_counter()
    response = await call_next(request)
    path = request.url.path
    REQUESTS.labels(request.method, path, response.status_code).inc()
    LATENCY.labels(path).observe(time.perf_counter() - start)
    return response


@app.get("/")
def index():
    return {"message": "Hello from the DevOps test service"}


@app.get("/health")
def health():
    return {"status": "ok"}


@app.get("/error")
def error():
    # Used to generate 5xx responses and trigger the high-error-rate alert
    raise HTTPException(status_code=500, detail="simulated failure")


@app.get("/metrics")
def metrics():
    return Response(generate_latest(), media_type=CONTENT_TYPE_LATEST)

• The two metric objects are created once, at import time. Prometheus's client keeps a global registry, so they exist as soon as the process starts.
• The middleware wraps every request: it records the start time, lets the request run, then increments the counter with the method, the path and the real status code, and records the duration in the histogram. This is why the response code of /error (500) shows up in the metrics even though the handler raises an exception.
• /error raises HTTPException(500). FastAPI turns that into a proper 500 JSON response, so it is a controlled failure, not a crash.
• /metrics returns the generated exposition text with the right content type, so Prometheus can read it directly.

3. The tests

There are four tests in webapp/tests/test_app.py, using FastAPI's TestClient:

from fastapi.testclient import TestClient

from app.main import app

client = TestClient(app)


def test_index():
    r = client.get("/")
    assert r.status_code == 200


def test_health():
    r = client.get("/health")
    assert r.status_code == 200
    assert r.json() == {"status": "ok"}


def test_error_endpoint_returns_500():
    assert client.get("/error").status_code == 500


def test_metrics_exposed():
    client.get("/health")
    r = client.get("/metrics")
    assert r.status_code == 200
    assert "http_requests_total" in r.text

Test	What it proves
test_index	The app starts and serves a request
test_health	The health endpoint returns exactly {"status": "ok"} — the contract Docker's health check relies on
test_error_endpoint_returns_500	/error really fails with 500, so the alert can be triggered
test_metrics_exposed	Metrics are generated and contain the request counter

pytest.ini contains pythonpath = ., which is what lets the tests from app.main import app without installing the package. The test-only dependencies (pytest, httpx) are in requirements-dev.txt, kept separate from the runtime requirements.txt so the production image stays small.

Run them locally with:

cd webapp
pip install -r requirements-dev.txt
pytest -v

The CI pipeline runs exactly this (see docs/gitlab.md), and GitLab shows the four tests in the pipeline's Tests tab.

4. The Dockerfile, line by line

FROM python:3.12-slim

ENV PYTHONDONTWRITEBYTECODE=1 PYTHONUNBUFFERED=1
WORKDIR /app

COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt

COPY app ./app

RUN useradd --system --uid 1001 appuser
USER appuser

EXPOSE 8000
HEALTHCHECK --interval=15s --timeout=3s --retries=3 \
  CMD python -c "import urllib.request; urllib.request.urlopen('http://localhost:8000/health')" || exit 1

CMD ["uvicorn", "app.main:app", "--host", "0.0.0.0", "--port", "8000"]

Line	What it does and why
FROM python:3.12-slim	Starts from a small official Python image. slim omits compilers and docs the service does not need
ENV PYTHONDONTWRITEBYTECODE=1 PYTHONUNBUFFERED=1	No .pyc files inside the container, and logs appear immediately instead of being buffered (important for docker logs)
WORKDIR /app	All following commands run in /app
COPY requirements.txt . then RUN pip install	Dependencies are copied before the app code. Docker caches this layer, so changing a source file does not reinstall packages
--no-cache-dir	Does not keep pip's download cache in the image, saving space
COPY app ./app	Copies only the application code
RUN useradd … + USER appuser	The container runs as a non-root user (uid 1001). If the app is ever compromised, it does not run as root
EXPOSE 8000	Documents the port. Publishing it is done by Compose, not here
HEALTHCHECK …	Every 15 s Docker calls /health; after 3 failures in a row the container is marked unhealthy (see section 6)
CMD ["uvicorn", …]	The exec form (["…"]) makes uvicorn PID 1, so it receives stop signals directly

.dockerignore excludes .venv/, __pycache__/, *.pyc and .pytest_cache/, so those never end up in the image.

5. The Compose file

services:
  webapp:
    build: .
    image: webapp:latest
    container_name: webapp
    restart: unless-stopped
    ports:
      - "8000:8000"
    networks:
      - monitoring-net

networks:
  monitoring-net:
    external: true

Setting	Meaning
build: .	Build the image from the Dockerfile in this folder
image: webapp:latest	Name the built image, so deploy can start it with --no-build
container_name: webapp	A fixed name, which the pipeline's health check and the docs refer to
restart: unless-stopped	Restart automatically after a crash (see section 7)
ports: 8000:8000	Publish the port to the host, so the service is reachable and Prometheus/curl can reach it
networks: monitoring-net	Join the shared network, so Prometheus and Grafana find webapp by name

monitoring-net is declared external: true: Compose expects the network to already exist instead of creating it. That is why the setup and the deploy stage run docker network create monitoring-net first (see docs/monitoring.md and docs/gitlab.md). Marking it external is what lets the webapp stack and the monitoring stack share one network even though they are separate Compose projects.

6. The health check

The health check has two halves that meet at /health:

• The endpoint — app/main.py returns {"status": "ok"} only when the app itself is running and serving requests.
• The check — the Dockerfile's HEALTHCHECK runs python -c "…urlopen('http://localhost:8000/health')" every 15 s, with a 3 s timeout and 3 retries.

Docker tracks the result and gives the container a state:

State	When
starting	Right after start, before the first successful check
healthy	The check returns success
unhealthy	Three consecutive failures

This state is not decoration. The CI deploy stage reads it with docker inspect -f '{{.State.Health.Status}}' webapp and fails the job if it never becomes healthy (see docs/gitlab.md). So the health check is what turns "the container started" into "the service works".

Check it by hand:

docker inspect -f '{{.State.Health.Status}}' webapp
docker inspect -f '{{json .State.Health}}' webapp | python3 -m json.tool

7. Restart policy and crash recovery

The Compose file sets restart: unless-stopped. Docker has several policies:

Policy	Restarts after a crash	Restarts after docker stop	After a host reboot
no (default)	no	no	no
on-failure	yes (only non-zero exits)	no	no
always	yes	yes — even something you stopped by hand	yes
unless-stopped	yes	no	yes (unless you had stopped it)

unless-stopped is the right middle ground: a crash is recovered automatically, but a container you stopped on purpose stays stopped. That distinction matters for the monitoring test in docs/monitoring.md, where docker stop webapp is used to trigger the WebappDown alert and must not be undone by the restart policy.

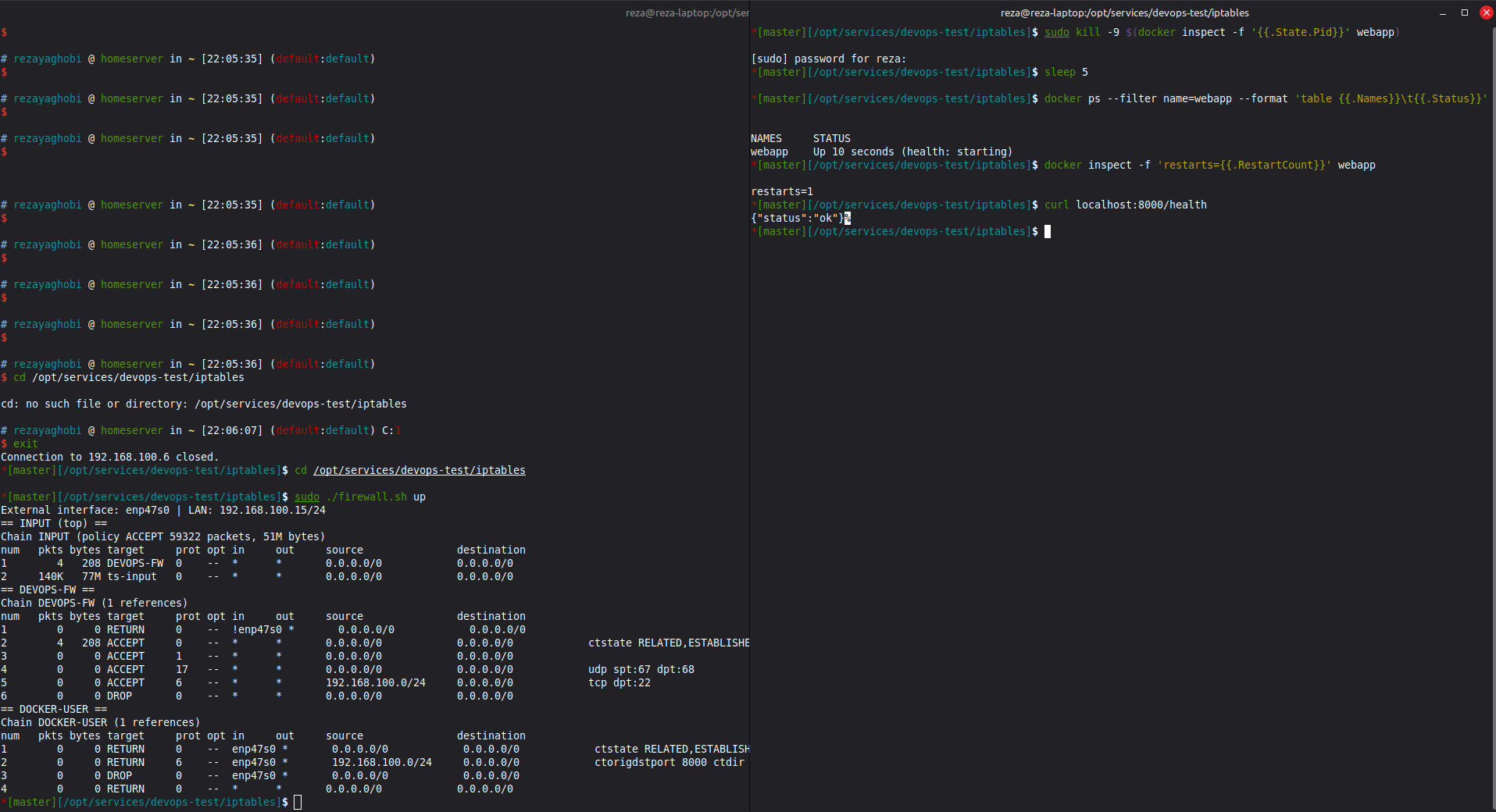

The crash-recovery demonstration. docker kill is not a graceful stop: it sends SIGKILL, the container dies immediately with a non-zero exit code, and the policy brings it back.

# 1. Note the current container and its restart count
docker ps --format '{{.Names}}\t{{.Status}}' | grep webapp
docker inspect -f '{{.RestartCount}}' webapp

# 2. Kill it hard
docker kill webapp

# 3. A moment later it is back — same container name, RestartCount increased
docker ps --format '{{.Names}}\t{{.Status}}' | grep webapp
docker inspect -f '{{.RestartCount}}' webapp

After docker kill webapp the container disappears for a moment and Docker starts it again on its own: docker ps shows webapp up again with a higher RestartCount, and no command was typed to bring it back.

Two things this deliberately does not cover:

• A container stopped with docker stop is considered a deliberate stop and stays down. That is the documented behavior, used on purpose in the monitoring test.
• restart: unless-stopped restarts the container, not the whole stack. If the Docker daemon itself is restarted, the policy is re-applied at daemon startup — but the network monitoring-net must still exist.

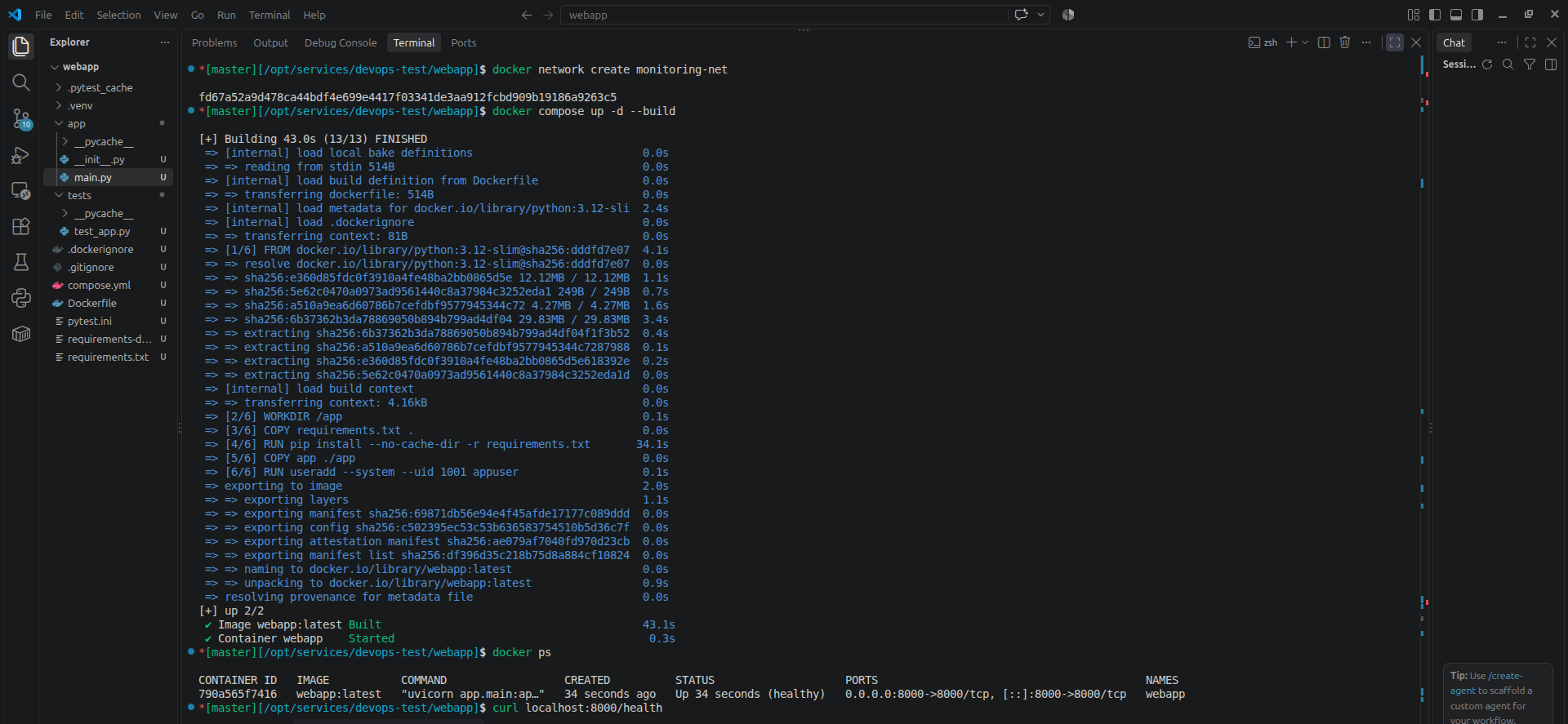

8. Run and verify

The webapp stack must be started before the monitoring stack, because both use the same network:

docker network create monitoring-net     # only once
cd webapp
docker compose up -d --build

docker compose up -d --build builds the image, creates the container and starts it detached. docker ps then shows webapp up, on port 8000, with its health status.

Confirm it works from the outside:

docker ps                                        # webapp is Up
curl localhost:8000/health                       # {"status":"ok"}
curl localhost:8000/                              # {"message":"Hello from the DevOps test service"}
curl -s localhost:8000/metrics | head -3          # Prometheus exposition text
curl -s -o /dev/null -w "%{http_code}\n" localhost:8000/error   # 500, on purpose

Watch the health state turn healthy:

docker inspect -f '{{.State.Health.Status}}' webapp

Stop the stack (this keeps the data volumes and the image):

docker compose down

9. Troubleshooting

Symptom	Cause and fix
docker compose up fails with network monitoring-net … not found	The network is declared external. Create it once: docker network create monitoring-net
Port 8000 is already in use	Another process or an old container holds it. Find it with ss -ltnp | grep 8000 or docker ps, then stop it
The container is unhealthy	The app is not answering /health. Read docker logs webapp; test locally with cd webapp && pytest -v
docker compose up reuses an old image	The build was skipped or cached. Rebuild with docker compose up -d --build
A docker stop webapp did not restart it	Expected: unless-stopped treats a deliberate stop as final. Use docker start webapp (or docker compose up -d)
docker kill webapp did not restart it	Check the policy with docker inspect -f '{{.HostConfig.RestartPolicy.Name}}' webapp; it must be unless-stopped
Changes to main.py do not appear	The running container still uses the old image. Rebuild: docker compose up -d --build
pytest cannot import app	Run it from webapp/ so pytest.ini (pythonpath = .) applies

10. What would change in production

• Pin the base image and dependencies. python:3.12-slim floats; in production pin a digest and pin the versions in requirements.txt for reproducible builds.
• Read-only filesystem and dropped capabilities. The app needs no write access and no privileges; add read_only: true and cap_drop: ["ALL"] to harden the container.
• Run uvicorn with multiple workers. A single process is fine for a demonstration, but production would use --workers (or Gunicorn with uvicorn workers) and CPU/memory limits.
• TLS and authentication in front of the service. Here it is served in plain HTTP; a real deployment terminates TLS at a reverse proxy.
• A real health/readiness split. Docker's HEALTHCHECK doubles as liveness and readiness; production often separates /healthz and /readyz.
• Image scanning and a registry. The image is built locally and deployed by tag; production would push to a registry and scan for vulnerabilities (see the publish stage in docs/gitlab.md).
