Kubernetes Dashboards
Grafana dashboards for the K3s cluster (see K3s). Two are imported from a community collection, two are hand-built for this homelab specifically.
Dashboards
dashboard-1786902530431.json — Kubernetes / Views / Pods
Per-pod detail view: CPU/memory usage against requests and limits, network bandwidth/packets/errors, OOM events, container restarts, throttling, QOS and priority class, and unscheduled/problem pods. Imported from dotdc/grafana-dashboards-kubernetes, built for the kube-prometheus-stack metric set — works as-is against this cluster's kube-state-metrics + cAdvisor scrape targets (see Monitoring Stack). Data source: Prometheus.

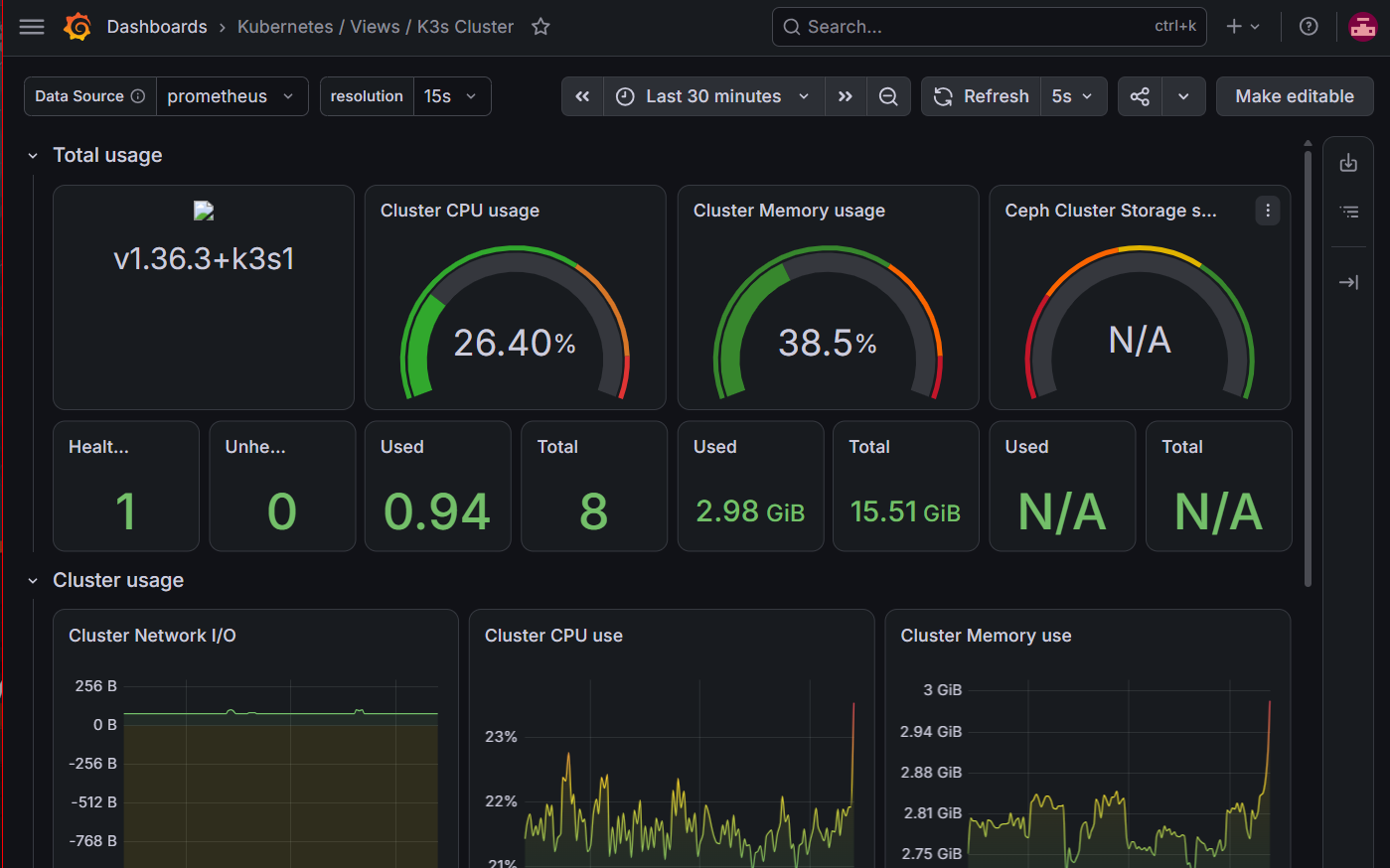

dashboard-1786902563692.json — Kubernetes / Views / K3s Cluster
Cluster-wide overview: total/used CPU and memory gauges, node health count, per-namespace and per-node CPU/memory/network breakdowns, and cluster filesystem usage (the storage panels — Ceph, Longhorn, ZFS ZVOLs — read N/A here since none of those are in use; this cluster runs local-path storage only). Also from dotdc/grafana-dashboards-kubernetes. Data source: Prometheus.
dashboard-1786902586059.json — K3s Unified Application Dashboard
Hand-built, namespace/pod-filtered application view: running vs. problem pod counts (kube_pod_status_phase), per-pod CPU and memory usage (container_cpu_usage_seconds_total, container_memory_working_set_bytes), and a live Loki log stream scoped to cluster="k3s-homeserver". A lighter-weight day-to-day view than the two imported dashboards above — built to answer "is this app healthy" rather than "how's the whole cluster." Data sources: Prometheus + Loki.
dashboard-1786902623268.json — K3s Professional Log Analyzer
Hand-built, log-focused: errors-vs-warnings timeline, top error-producing pods, and a filtered live log stream with namespace/pod/container/severity/text filters. LogQL queries carry a !~ exclusion for known-benign noise (CoreDNS's config-glob warning, kube-state-metrics's EndpointSlice deprecation notice) so the error/warning counts reflect real issues — see Lessons Learned. Data source: Loki. Already referenced in Monitoring Stack.
Why two sets
The two imported dashboards (Pods, K3s Cluster) give broad, standard Kubernetes observability out of the box — useful for general cluster health without building anything. The two hand-built ones (Unified Application Dashboard, Professional Log Analyzer) are scoped to this specific setup: single k3s-homeserver cluster, Loki log correlation, and noise already filtered for the warnings this homelab actually produces. Kept side by side rather than merged, so the general-purpose community dashboards stay easy to update/re-import from upstream without losing the custom ones.
