Ansible Playbooks

How updates get applied across the homelab: one shared role, one thin playbook per stack, triggered through Semaphore.

Why

Updating each Docker Compose stack by hand — SSH in, cd into the folder, docker compose pull, docker compose up -d, check nothing broke, prune old images — works fine for one or two services. Across a dozen-plus stacks it gets repetitive and easy to skip steps (especially the health check after recreating containers). Ansible plus Semaphore turns that into a one-click job per stack, with consistent behavior and a visible run history.

Structure

ansible/
└── playbooks/
    ├── roles/
    │   └── docker_compose_update/
    │       └── tasks/
    │           └── main.yml       # the shared update logic
    ├── update-filebrowser.yml
    ├── update-n8n.yml
    ├── update-npm.yml
    ├── update-pihole.yml
    ├── update-plex.yml
    ├── update-portainer.yml
    ├── update-prowlarr.yml
    ├── update-radarr.yml
    ├── update-samba.yml
    ├── update-sentinel.yml
    ├── update-smartctl.yml
    ├── update-sonarr.yml
    ├── update-whisparr.yml
    ├── update-agent-canvas.yml
    ├── update-grafana.yml
    └── ping.yml

One role, reused by every playbook. Each playbook is intentionally tiny:

---
- hosts: all
  become: true
  vars:
    compose_dir: "/home/rezayaghobi/docker/<service>"
    service_name: "<Friendly Name>"
  roles:
    - docker_compose_update

Adding a new stack means adding a new playbook like the one above — no changes to the role itself.

What the role actually does

docker_compose_update runs the same sequence for every stack:

1. Records a start time, for a duration summary at the end
2. Snapshots docker system df before the pull, so disk usage is visible
3. Runs docker compose pull in the stack's directory
4. Snapshots docker system df again after the pull — comparing the two makes it obvious when an update pulled down something unexpectedly large (this is what caught a ~9GB pull for the OpenHands/Ollama stack early on — see AI Coding Agent)
5. Runs docker compose up -d to recreate any containers with new images
6. Waits 5 seconds, then checks docker compose ps
7. Asserts every container is actually up — fails the run (and skips cleanup) if anything shows Exit, Created, or Restarting instead of running
8. Runs docker image prune -f to reclaim space from now-unused image layers, but only if the health check passed
9. Prints a summary — duration, cleanup result, pass/fail

If any step fails (a bad pull, a container that won't start), Ansible stops the play immediately rather than continuing on to prune images out from under a broken deployment.

Running it via Semaphore

Semaphore (see Semaphore Guide) is what actually executes these — no manual ansible-playbook on the server. Each playbook is set up as a Task Template pointed at this repo, so updating a stack is a matter of picking its template and hitting run.

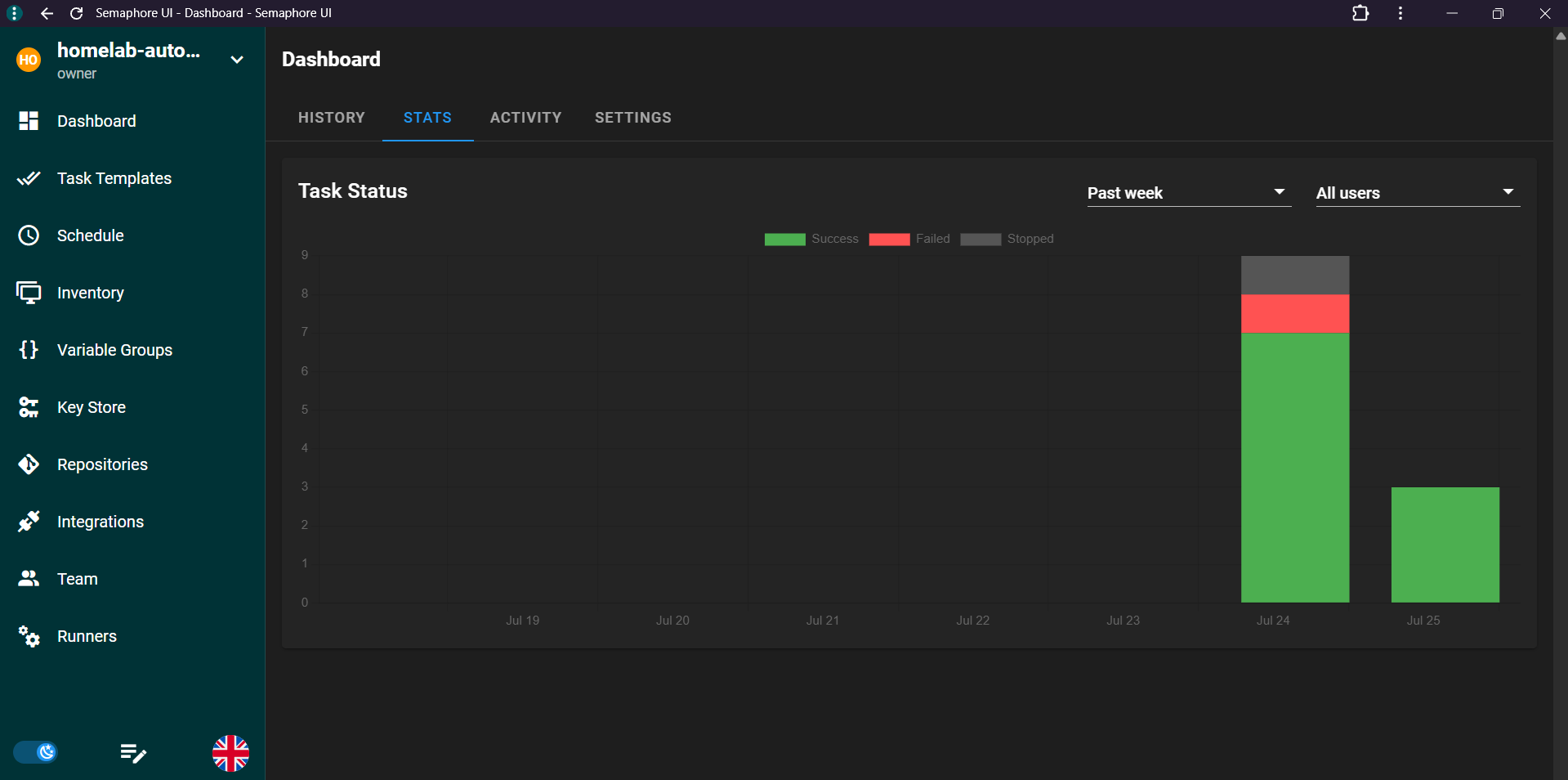

The Semaphore dashboard gives a quick visual of run history — successes in green, failures in red:

Lessons learned

• Keeping the update logic in a single role instead of copy-pasting it into every playbook means a fix or improvement (like the disk-usage snapshots) only has to happen once — see the role's own history for an example of that in practice.
• The docker system df before/after comparison earns its place: it's what made an unexpectedly large image pull for OpenHands/Ollama visible immediately, instead of just being a mystery bandwidth spike after the fact.
• The health-check assert before pruning matters — pruning images out from under a stack that failed to come back up would make debugging (and rolling back) harder, not easier.
