Ansible Playbooks

How updates get applied across the homelab: one shared role, one thin playbook per stack, triggered through Semaphore. A separate provisioning playbook handles fresh server setup.

Why

Updating each Docker Compose stack by hand — SSH in, cd into the folder, docker compose pull, docker compose up -d, check nothing broke, prune old images — works fine for one or two services. Across a dozen-plus stacks it gets repetitive and easy to skip steps (especially the health check after recreating containers). Ansible plus Semaphore turns that into a one-click job per stack, with consistent behavior and a visible run history.

Structure

ansible/
├── README.md                                  # full directory documentation
├── update-playbooks/                          # day-to-day stack updates
│   ├── roles/
│   │   └── docker_compose_update/
│   │       └── tasks/main.yml                 # the shared update logic
│   ├── update-filebrowser.yml
│   ├── update-n8n.yml
│   ├── update-npm.yml
│   ├── update-pihole.yml
│   ├── update-plex.yml
│   ├── update-portainer.yml
│   ├── update-prowlarr.yml
│   ├── update-radarr.yml
│   ├── update-samba.yml
│   ├── update-sentinel.yml
│   ├── update-smartctl.yml
│   ├── update-sonarr.yml
│   ├── update-whisparr.yml
│   ├── update-agent-canvas.yml
│   ├── update-grafana.yml
│   └── ping.yml
│
└── preparing-playbook/                        # one-time server provisioning
    └── reza-ansible/
        ├── ansible.cfg
        ├── preparing.yaml                     # harden + Docker install
        ├── repo-server.yaml                   # Nexus + Traefik setup
        ├── inventory/
        │   ├── host.yaml
        │   ├── group_vars/all/                # shared variables
        │   └── host_vars/vagrant-test.yaml    # Vagrant overrides
        └── roles/
            ├── preparing_server/              # packages, sshd, iptables, auditd, lynis
            ├── docker/                        # Docker CE + Compose plugin
            └── repo-server/                   # Nexus3 + Traefik + registry

See the ansible/ README for the full breakdown of every file and role.

update-playbooks — how it works

One role, reused by every playbook. Each playbook is intentionally tiny:

---
- hosts: all
  become: true
  vars:
    compose_dir: "/home/rezayaghobi/docker/<service>"
    service_name: "<Friendly Name>"
  roles:
    - docker_compose_update

Adding a new stack means adding a new playbook like the one above — no changes to the role itself.

What the role actually does

docker_compose_update runs the same sequence for every stack:

Records a start time, for a duration summary at the end
Snapshots docker system df before the pull, so disk usage is visible
Runs docker compose pull in the stack's directory
Snapshots docker system df again after the pull — comparing the two makes it obvious when an update pulled down something unexpectedly large (this is what caught a ~9GB pull for the OpenHands/Ollama stack early on — see AI Coding Agent)
Runs docker compose up -d to recreate any containers with new images
Waits 5 seconds, then checks docker compose ps
Asserts every container is actually up — fails the run (and skips cleanup) if anything shows Exit, Created, or Restarting instead of running
Runs docker image prune -f to reclaim space from now-unused image layers, but only if the health check passed
Prints a summary — duration, cleanup result, pass/fail

If any step fails (a bad pull, a container that won't start), Ansible stops the play immediately rather than continuing on to prune images out from under a broken deployment.

preparing-playbook — server provisioning

A full server preparation pipeline for fresh Ubuntu/Debian installs, designed for testing against the Vagrant VM before running on real hardware. See the ansible/ README for details on each role.

`preparing.yaml`

Runs two roles: preparing_server (packages, sshd, iptables, fail2ban, auditd, sysctl, lynis) then docker (Docker CE + Compose plugin install + daemon config).

`repo-server.yaml`

Runs the repo-server role — pulls and configures Nexus3, Traefik, and a Docker registry as a self-hosted artifact repository.

Running locally

cd ansible/preparing-playbook/reza-ansible
ansible-playbook preparing.yaml -i inventory/host.yaml
ansible-playbook repo-server.yaml -i inventory/host.yaml

Running via Semaphore

Semaphore (see Semaphore Guide) is what actually executes these — no manual ansible-playbook on the server. Each playbook is set up as a Task Template pointed at this repo, so updating a stack is a matter of picking its template and hitting run.

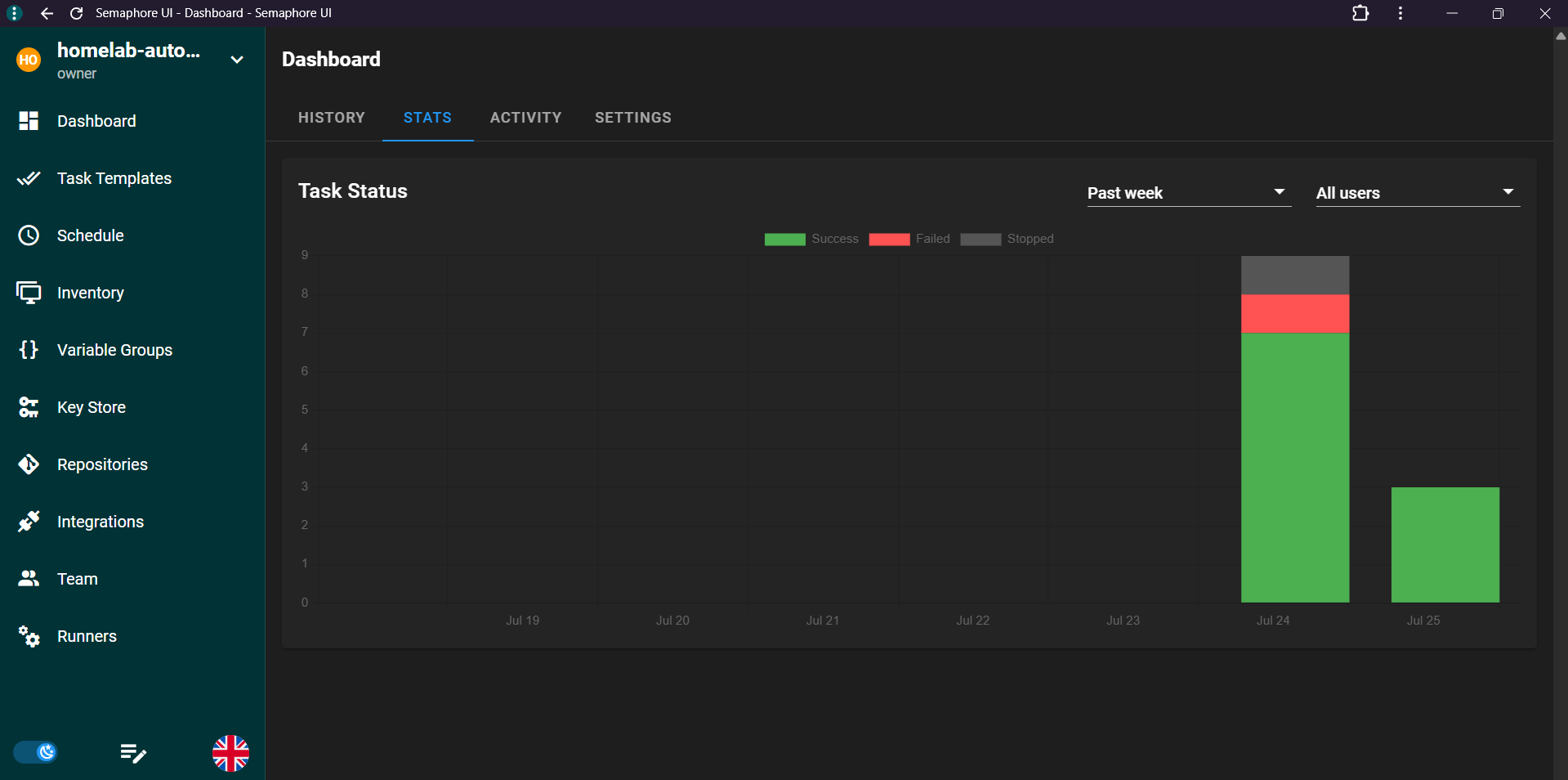

The Semaphore dashboard gives a quick visual of run history — successes in green, failures in red:

Lessons learned

Keeping the update logic in a single role instead of copy-pasting it into every playbook means a fix or improvement (like the disk-usage snapshots) only has to happen once — see the role's own history for an example of that in practice.
The docker system df before/after comparison earns its place: it's what made an unexpectedly large image pull for OpenHands/Ollama visible immediately, instead of just being a mystery bandwidth spike after the fact.
The health-check assert before pruning matters — pruning images out from under a stack that failed to come back up would make debugging (and rolling back) harder, not easier.
Testing provisioning playbooks against a disposable Vagrant VM first catches issues like sshd port mismatches and iptables misconfigurations before they lock you out of real hardware.
