K3s

A single-node K3s cluster running alongside the existing Docker Compose stack — the first step toward learning Kubernetes hands-on rather than purely through theory, without disrupting the services already running on this host.

Why K3s, not kind or full kubeadm

Full kubeadm Kubernetes runs a separate etcd cluster plus independent API server, controller-manager, and scheduler processes — too much overhead for this host's RAM budget. kind runs each cluster node as a Docker container, which nests Kubernetes' own networking and iptables rules inside a host that already has Docker managing iptables for 25+ services — more surface area for conflicts, not less, and better suited to disposable CI/test clusters than a persistent homelab service.

K3s runs as a single systemd-managed binary directly on the host, with SQLite (via kine) standing in for etcd on a single-node setup — the lightest option that still behaves like real Kubernetes.

Install

curl -sfL https://get.k3s.io | INSTALL_K3S_EXEC="server \
  --disable=traefik \
  --disable=servicelb \
  --flannel-backend=vxlan \
  --write-kubeconfig-mode=644" sh -

--disable=traefik / --disable=servicelb — K3s ships with its own ingress controller and LoadBalancer implementation, both of which try to bind ports 80/443. This host's reverse proxy (see Reverse Proxy) already owns those ports — disabling K3s's defaults avoids the conflict entirely rather than debugging it after the fact.
--flannel-backend=vxlan — explicit rather than relying on the default, and chosen over host-gw since VXLAN works across nodes that aren't on the same L2 segment, keeping the door open for a future worker node.
--write-kubeconfig-mode=644 — makes /etc/rancher/k3s/k3s.yaml world-readable so a personal, non-root kubeconfig copy can be made without repeated sudo.

Exposure pattern: NPM in front, NodePort behind

Rather than running a second ingress controller inside the cluster (which would mean two reverse proxies stacked for no benefit), each service gets a Service of type: NodePort. The existing reverse proxy adds one more proxy host pointing at homeserver:<nodeport> — identical to how it already fronts every Docker container. From the proxy's perspective, a K8s pod behind a NodePort is indistinguishable from a Docker container; same TLS setup, same cert renewal flow, zero new moving parts in the HTTPS chain.

Namespace and resource governance

All workloads live in a dedicated apps namespace (not default), governed by a LimitRange and ResourceQuota sized for this host's RAM budget:

apiVersion: v1
kind: LimitRange
metadata:
  name: apps-limits
  namespace: apps
spec:
  limits:
  - type: Container
    default:        { cpu: "200m", memory: "256Mi" }
    defaultRequest:  { cpu: "50m",  memory: "64Mi" }
    max:             { cpu: "500m", memory: "512Mi" }
    min:             { cpu: "10m",  memory: "16Mi" }
---
apiVersion: v1
kind: ResourceQuota
metadata:
  name: apps-quota
  namespace: apps
spec:
  hard:
    requests.cpu: "1"
    requests.memory: "768Mi"
    limits.cpu: "1.5"
    limits.memory: "1.5Gi"
    pods: "10"

Any container deployed without explicit resource fields automatically inherits the LimitRange defaults; no container can exceed the max bounds even if it tries; and the whole namespace is hard-capped at 1.5 CPU / 1.5Gi RAM combined — protecting the Docker services and the OS from a runaway K8s workload, regardless of how many pods end up running.

Backups

The cluster's SQLite state (/var/lib/rancher/k3s/server/db/state.db) is backed up on a rolling schedule via a systemd timer — deliberately off the OS disk, onto a separate physical drive:

sqlite3 "$DB_PATH" ".backup '$BACKUP_FILE'"
gzip "$BACKUP_FILE"
# keep only the 2 most recent, prune the rest

Runs every 4 days via OnUnitActiveSec=4d with Persistent=true, so a missed run (host powered off) catches up on next boot rather than silently skipping. This covers cluster state — Deployments, Services, config — not data inside PersistentVolumes; there are no stateful workloads in the cluster yet, so that gap doesn't currently apply.

kubectl ergonomics

Personal kubeconfig at ~/.kube/config (copied from /etc/rancher/k3s/k3s.yaml), with KUBECONFIG explicitly exported in .zshrc — avoids the k3s-bundled kubectl silently falling back to its own default path and disagreeing with other tools about which config is authoritative.
kubectx / kubens for fast context and namespace switching, plus oh-my-zsh's kubectl plugin for tab-completion and short aliases (kgp, kgd, kaf, etc.).
Default namespace set to apps via kubens apps, so day-to-day commands don't need -n apps on every invocation.

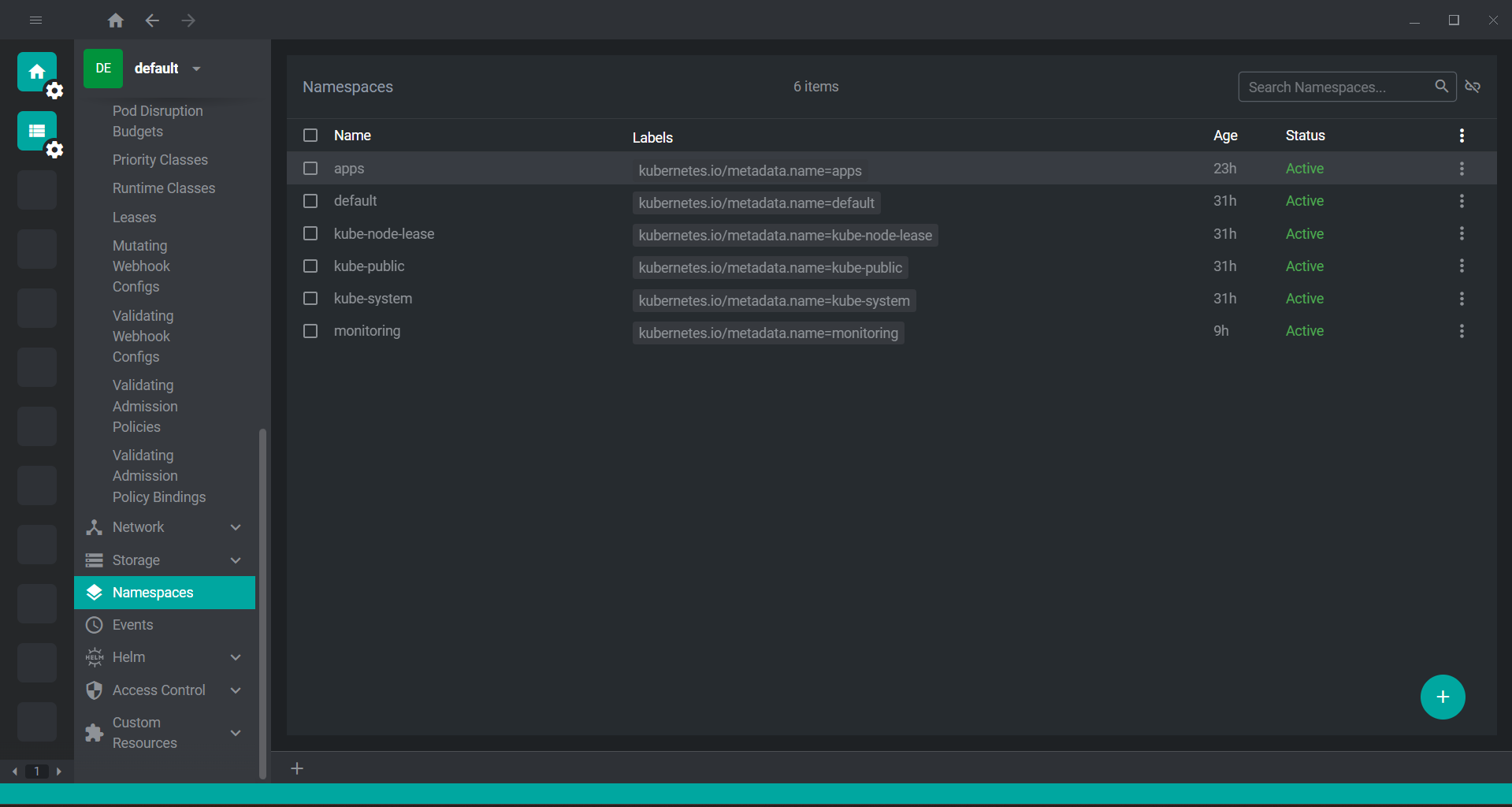

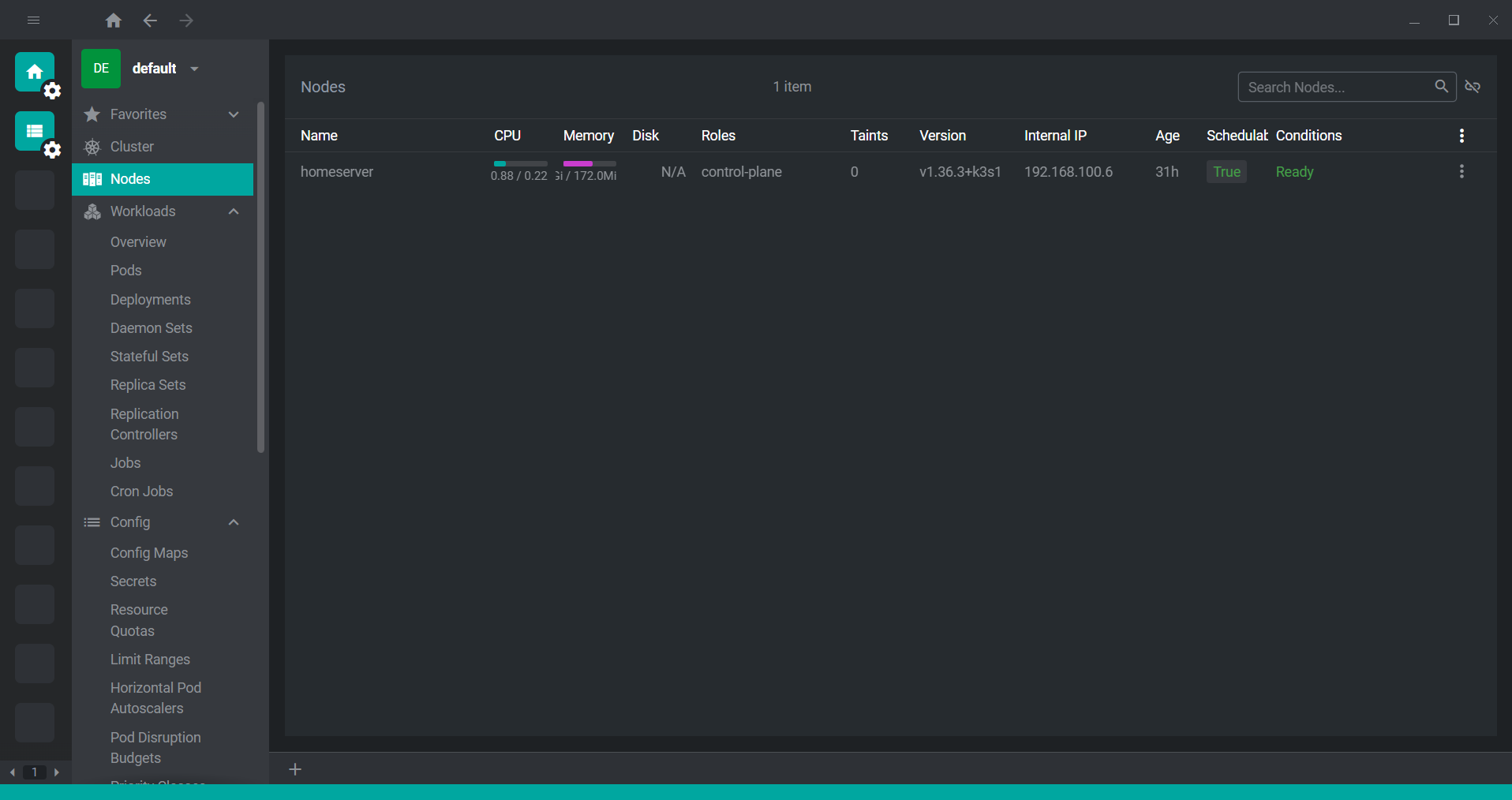

GUI: FreeLens

FreeLens — the actively maintained, fully open-source fork of Lens, created after the original Lens IDE moved behind a paid subscription. Same core experience (cluster overview, live workload view, logs, terminal) reading the same kubeconfig, with no account and no license cost — a better fit for a self-hosted learning project than a subscription tool.

Monitoring integration

Rather than deploying a second Prometheus/Grafana/Loki stack inside K3s, the existing Docker-based monitoring stack (see Monitoring Stack) was extended to scrape and tail the K3s cluster as an additional source — avoiding the RAM cost of duplicate infrastructure.

The gap this closes: K3s uses containerd, not Docker, so the existing cAdvisor container (which watches the Docker socket) has no visibility into K8s pods at all. Two things bridge that gap:

kube-state-metrics — deployed into the cluster, exposes object-level state (deployment replica counts, pod restarts, resource requests vs. limits) as Prometheus metrics via a NodePort.
Kubelet's built-in cAdvisor — already running as part of K3s, exposes per-pod CPU/memory at https://<host>:10250/metrics/cadvisor. Requires a bearer token, unlike the open Docker cAdvisor endpoint — sourced from a scoped ServiceAccount created specifically for external Prometheus access.

Both added as standard Prometheus scrape jobs, authenticated via a ClusterRole limited to read-only access on nodes, pods, and services — no broader cluster privileges than the metrics actually require.

Logs follow the same pattern: Grafana Alloy's discovery.kubernetes + loki.source.kubernetes components stream pod logs through the K8s API (each needing its own client block with the same kind of scoped token — the two components don't share credentials even when defined side-by-side), landing in the same Loki instance as the Docker container logs. K3s pod log streams carry a cluster="k3s-homeserver" label to distinguish them from Docker-origin entries at query time.

Registry access under sanctions

registry.k8s.io (Google-hosted) returns a hard 403 Forbidden from this network — a harder block than the intermittent Docker Hub flakiness described elsewhere in this wiki, and one that will resurface for any future addon (cert-manager, ingress-nginx, etc.) that defaults to pulling from it.

Working pattern when this happens:

docker pull <community-mirror-image>       # Docker Hub / ghcr.io usually reachable
docker save <image> -o /tmp/image.tar
sudo k3s ctr images import /tmp/image.tar   # load directly into containerd

Sidesteps registry.k8s.io entirely by pulling through Docker (which has working access) and importing straight into containerd's local store, rather than waiting on network access that isn't coming.

Why this matters

The instinct to keep K3s and the existing Docker stack cleanly separated — one reverse proxy, one monitoring stack, one set of conventions — paid off directly: every new K8s workload is visible in the same Grafana instance, fronted by the same TLS setup, without a second parallel toolchain to maintain. On a four-core host with limited RAM, reusing existing infrastructure instead of duplicating it isn't just tidier — it's the difference between K3s fitting on this hardware at all and it competing with everything else already running here.
