Monitoring Stack

Prometheus, Grafana, cAdvisor, and node-exporter running together give full visibility into both the host and every container on it — essential on modest hardware where knowing what's consuming resources matters. Loki and Grafana Alloy extend this from metrics into logs, so container output is searchable in the same place instead of living only in docker logs.

Components

Prometheus — scrapes and stores time-series metrics from every target below
node-exporter — exposes host-level metrics (CPU, memory, disk, network)
cAdvisor — exposes per-container resource usage
Grafana — dashboards on top of Prometheus and Loki data
Loki — stores and indexes logs by label, not full text, keeping it lightweight
Grafana Alloy — discovers every running container and ships its logs to Loki
kube-state-metrics — exposes K3s object-level state (deployments, pod restarts, resource requests/limits) as Prometheus metrics

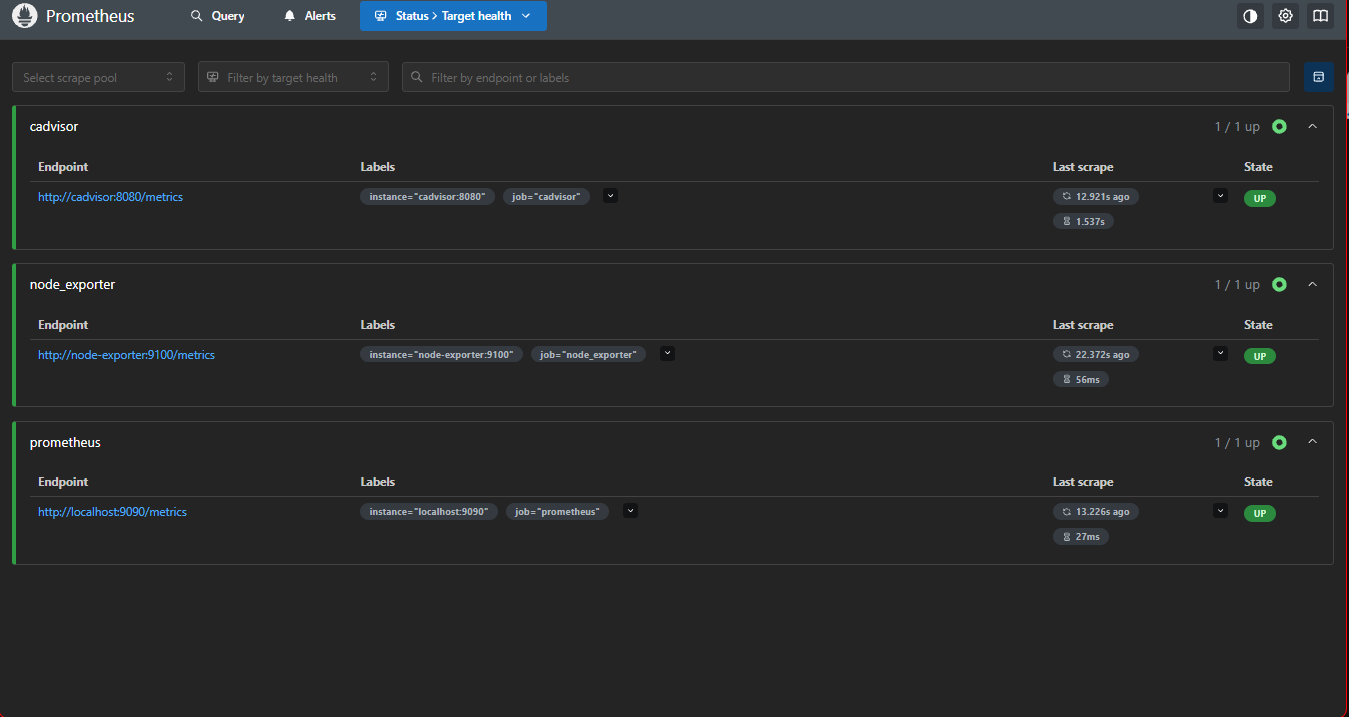

Prometheus targets

All scrape targets healthy and reporting:

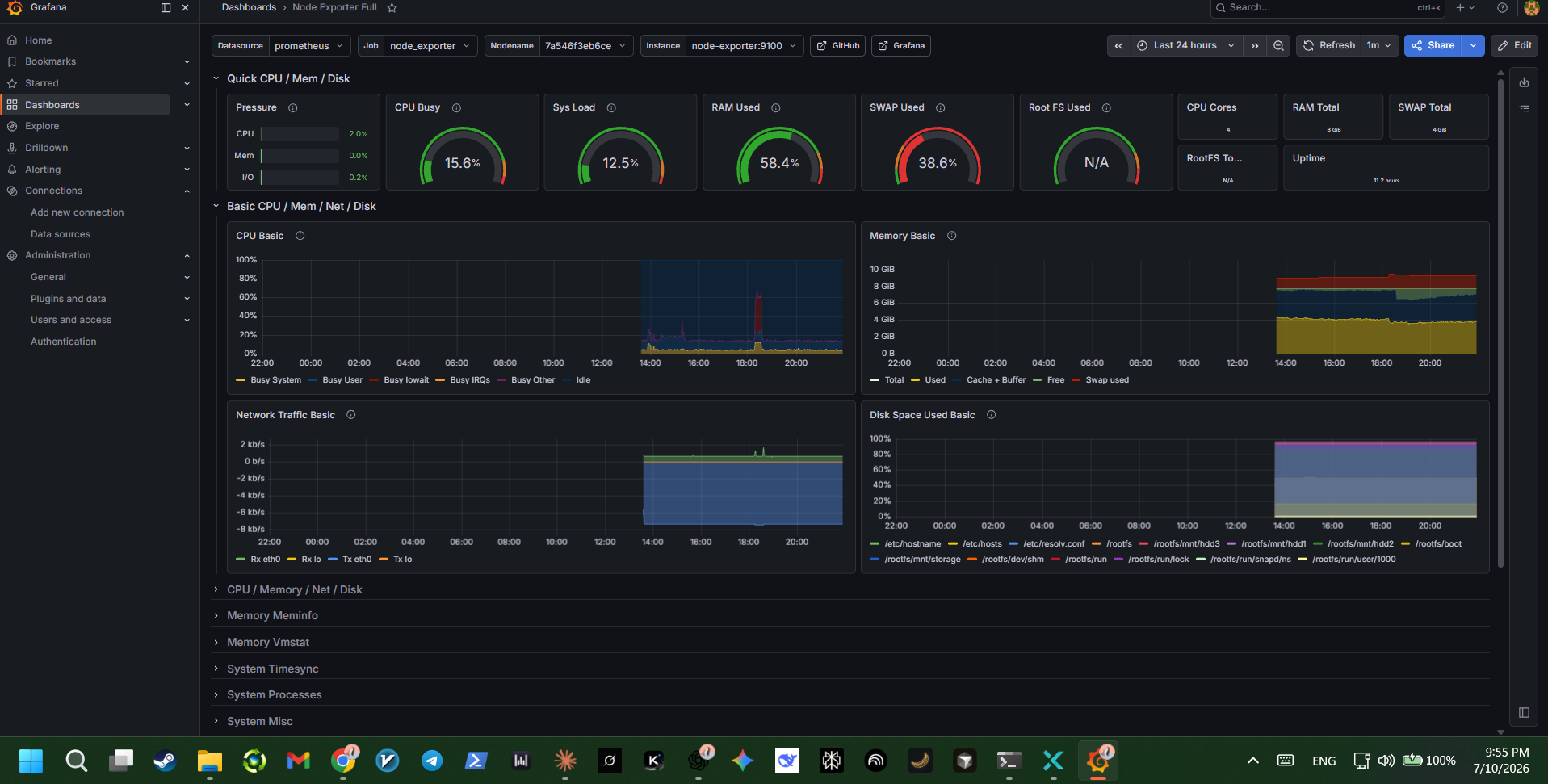

Grafana: Node Exporter Full dashboard

Host-level metrics — CPU, memory, swap, disk, and network — over a rolling 24-hour window:

Centralized logging with Loki + Alloy

Every running container's logs get discovered and tagged automatically — no per-service logging config needed anywhere else in this repo. Alloy watches the Docker socket, picks up new containers as they start, and labels each log stream with container, container_name, service_name, and instance before forwarding to Loki.

Note: this uses Grafana Alloy, not Promtail — Promtail reached end-of-life in March 2026 and was removed outright as of Loki 3.7.3, with its functionality folded into Alloy. Any current Loki setup should be built on Alloy rather than following older Promtail-based tutorials.

Logs are browsable two ways in Grafana:

Explore → Loki, querying by label directly (e.g. {container="grafana"})
Drilldown → Logs, a zero-config log browser bundled with Grafana — no dashboard needed to start exploring

GitLab & Runner metrics

Self-hosted GitLab (see GitLab CI/CD) exposes its own Prometheus-format metrics at /-/metrics, separate from Omnibus's bundled monitoring stack, which is disabled here in favor of this existing setup. The Runner similarly exposes its own metrics endpoint once listen_address is set in config.toml. Both are added as standard Prometheus scrape targets:

- job_name: 'gitlab'
  metrics_path: '/-/metrics'
  static_configs:
    - targets: ['192.168.100.6:8929']

- job_name: 'gitlab-runner'
  static_configs:
    - targets: ['192.168.100.6:9252']

Visualized on a hand-built Grafana dashboard (dashboards/gitlab-application-runner-metrics.json) rather than GitLab's official community dashboard — that one targets metric names from Omnibus's own bundled Prometheus, which isn't what's running here.

K3s cluster monitoring

The K3s cluster (see K3s) is folded into this same stack rather than running a second, cluster-local Prometheus/Grafana/Loki — cAdvisor here only watches the Docker socket, so it has zero visibility into K8s pods on its own. Two additions close that gap:

kube-state-metrics — deployed into the cluster, scraped as a standard Prometheus target, exposing object-level state (replica counts, pod restarts, resource requests vs. limits).
Kubelet's built-in cAdvisor — already running as part of K3s, scraped at https://<host>:10250/metrics/cadvisor for per-pod CPU/memory, authenticated via a scoped bearer-token ServiceAccount rather than the open endpoint the Docker-side cAdvisor uses.

Logs follow the same pattern: Grafana Alloy's discovery.kubernetes + loki.source.kubernetes components stream pod logs into the same Loki instance as the Docker container logs, tagged with cluster="k3s-homeserver" to distinguish K3s-origin entries from Docker-origin ones at query time.

K3s Professional Log Analyzer (dashboards/k3s-professional-log-analyzer.json) is the hand-built Grafana dashboard for this — namespace/pod/container filters, an errors-vs-warnings timeline, top error-producing pods, and a live filtered log stream. Its LogQL queries carry a !~ exclusion for known-benign noise (CoreDNS's optional-config-file glob warning, kube-state-metrics's EndpointSlice deprecation notice) so the Errors/Warnings panels stay focused on things actually worth investigating rather than cosmetic log lines. See Lessons Learned for how that gap was found and closed.

Why this matters

On a lower-spec host, resource headroom is limited. Having per-container and host-level metrics from day one means a runaway container or a creeping memory leak shows up on a dashboard before it takes the box down — instead of finding out from an outage. Centralized logs close the other half of that gap: when a container does misbehave, its logs are searchable and correlated against the same timeline as its resource usage, rather than requiring a separate docker logs per container after the fact.
